ZEISS Precision Shooting

ZEISS Pro-Series MAX-DUTY Tripod Kits

Built for speed and stability.

In precision rifle competition, it comes down to the final score and time of completion to determine the winner. There are no excuses! Knowing this, ZEISS introduces the Pro-Series Tripod Kit – MAX-DUTY model. It offers massive 44 mm diameter, 10-layer carbon fiber legs, coupled with an exclusive and highly innovative single-point leg adjustment system for fast deployment and stowing of the three-section leg(s). This saves approximately 7-15 seconds of valuable set-up time for each respective stage of the competition.

Carbon fiber tripod with adjustable legs and a fluid pan head, designed for professional camera support, shown on a white background.
Carbon fiber tripod with adjustable legs and a fluid pan head, designed for professional camera support, shown on a white background.

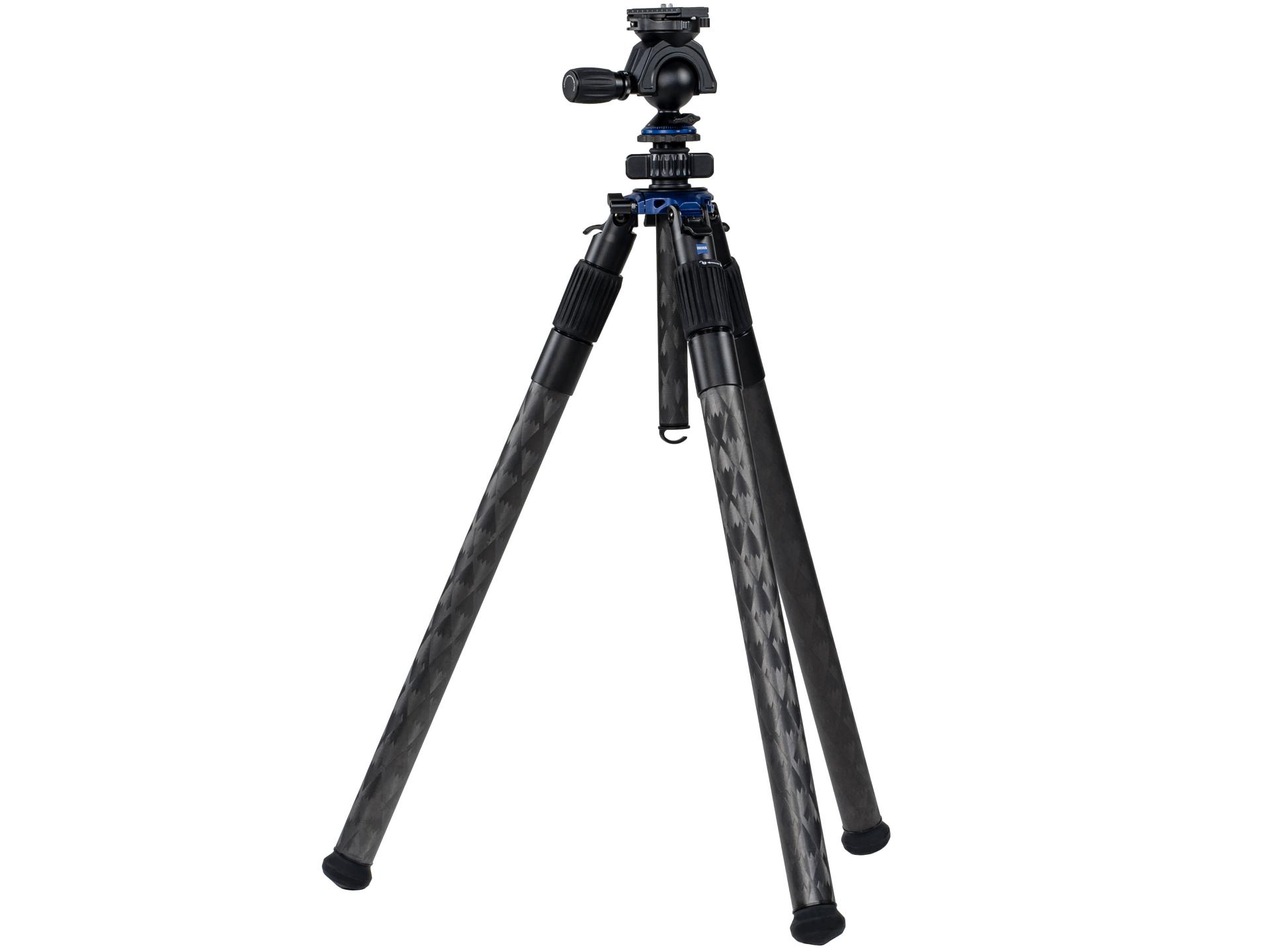

MAX-DUTY V

The MAX-DUTY V includes Ballhead V-60 (Versatile), having 115 degrees of adjustment. This provides a greater amount of tilt angle adjustments over multiple compound directions.

Carbon fiber tripod with adjustable legs and a fluid pan head, designed for ZEISS optical equipment.
Carbon fiber tripod with adjustable legs and a fluid pan head, designed for ZEISS optical equipment.

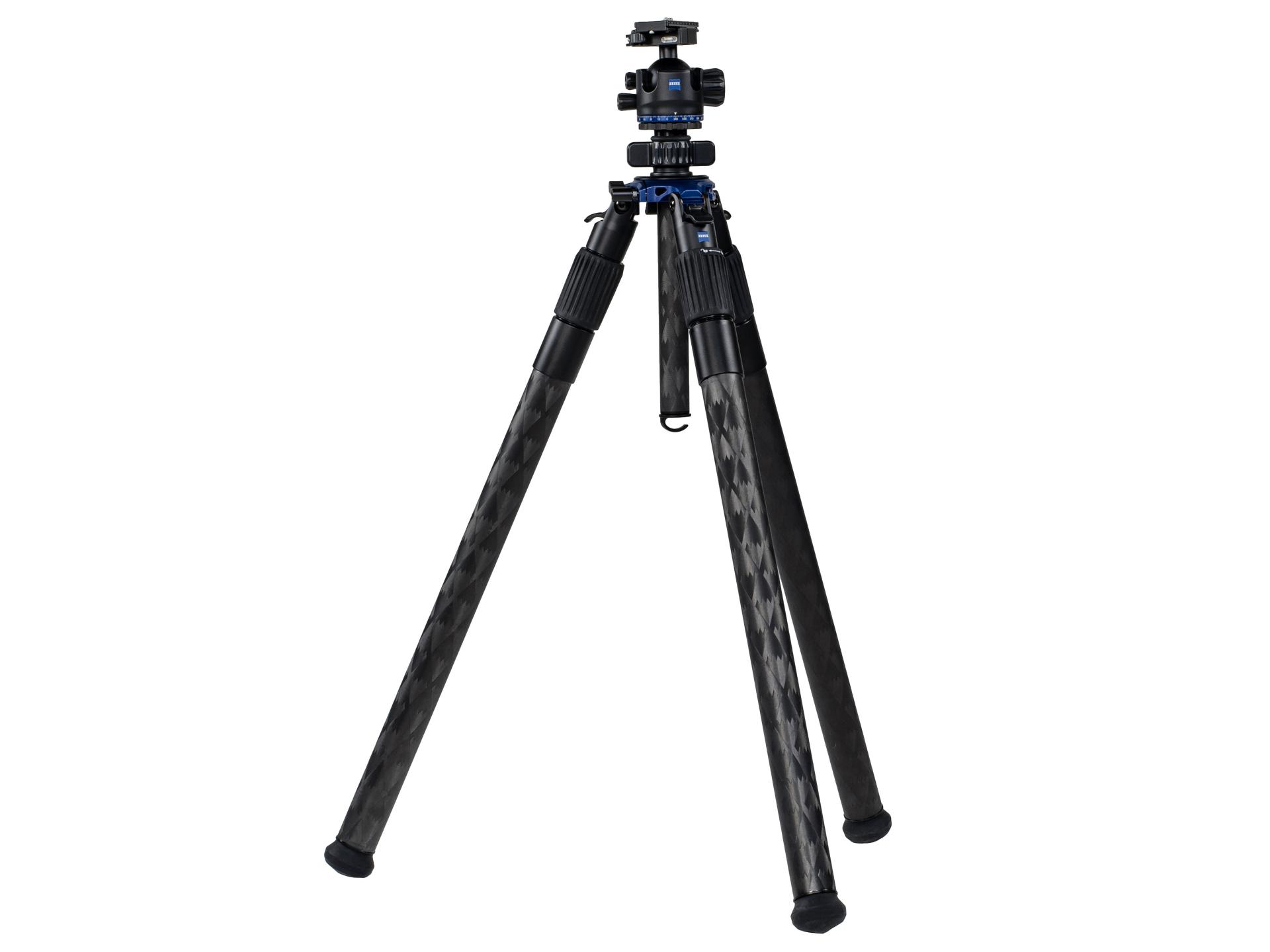

MAX-DUTY L

The MAX-DUTY L comes with Ballhead L-55 (Low Profile) allowing adjustments up to 90 degrees. The lower profile of the head provides more overall stability. It is 3 cm | 0.8 inches shorter at full length than the V model, and weighs 0.2 kg | 0.5 lbs less.

Introduction Video

ZEISS Pro-Series Tripod Kit - MAX-DUTY for Precision Rifle Competition

In this video, our competitors dive into the features and benefits of the Pro-Series Tripod Kit - MAX-DUTY, designed for unmatched stability and versatility in precision rifle shooting. This advanced competition-ready tripod comes equipped with a highly versatile ballhead, a removable center column, and essential accessories – all bundled together for a seamless purchase experience.

A man is using ZEISS optics mounted on a tripod while aiming outdoors under a clear blue sky.

Exceptional Stability

  • Optimized 44 mm carbon-fiber leg diameter (36/40/44 mm)
  • Large, thread-in rubber feet for stay-in-place footing
  • Multi-angle leg positions consisting of 24, 55, and 85 degrees
  • Multiple adjustments for hassle-free stability
Person adjusting the head of a professional tripod setup on grass, with visible blue ZEISS components.

Fast & Easy Setup

  • Inverted 3-section leg design for ultimate compactness
  • Single-point leg adjustments with extended Twist-Locks
  • Modular, open apex system for maximum versatility
  • Removable through-the-center column for easy height adjustments
  • Easy-press leg adjustment mechanism
A man lies prone in a grassy field aiming a rifle equipped with a ZEISS scope, with a forested landscape in the background.

Robust Design

  • Machined aluminum frame and joints
  • Black, anodized finish
  • 10-layer, matrix-pattern, heavy-duty carbon fiber legs
  • Laboratory and field tested via thousands of cycles and various extreme environmental conditions
Black ZEISS tripod ball head with adjustable knobs and mounting plate, displayed on a white background.

Secure Connection

  • Arca-Swiss top mounting system
  • 3/8” Thread-on head
  • 1/4-20 extended balance plate with rubberized anti-slip strips
  • Strong, adjustable, ergo-friendly clamps and knobs
  • Carbon fiber tripod kit with multiple components, including a tripod head, mounting accessories, instruction manual, and a black carrying case featuring the ZEISS logo.

    With Ballhead V-60

  • Camouflaged ZEISS trail camera with a large external antenna, shown mounted inside an open protective case.

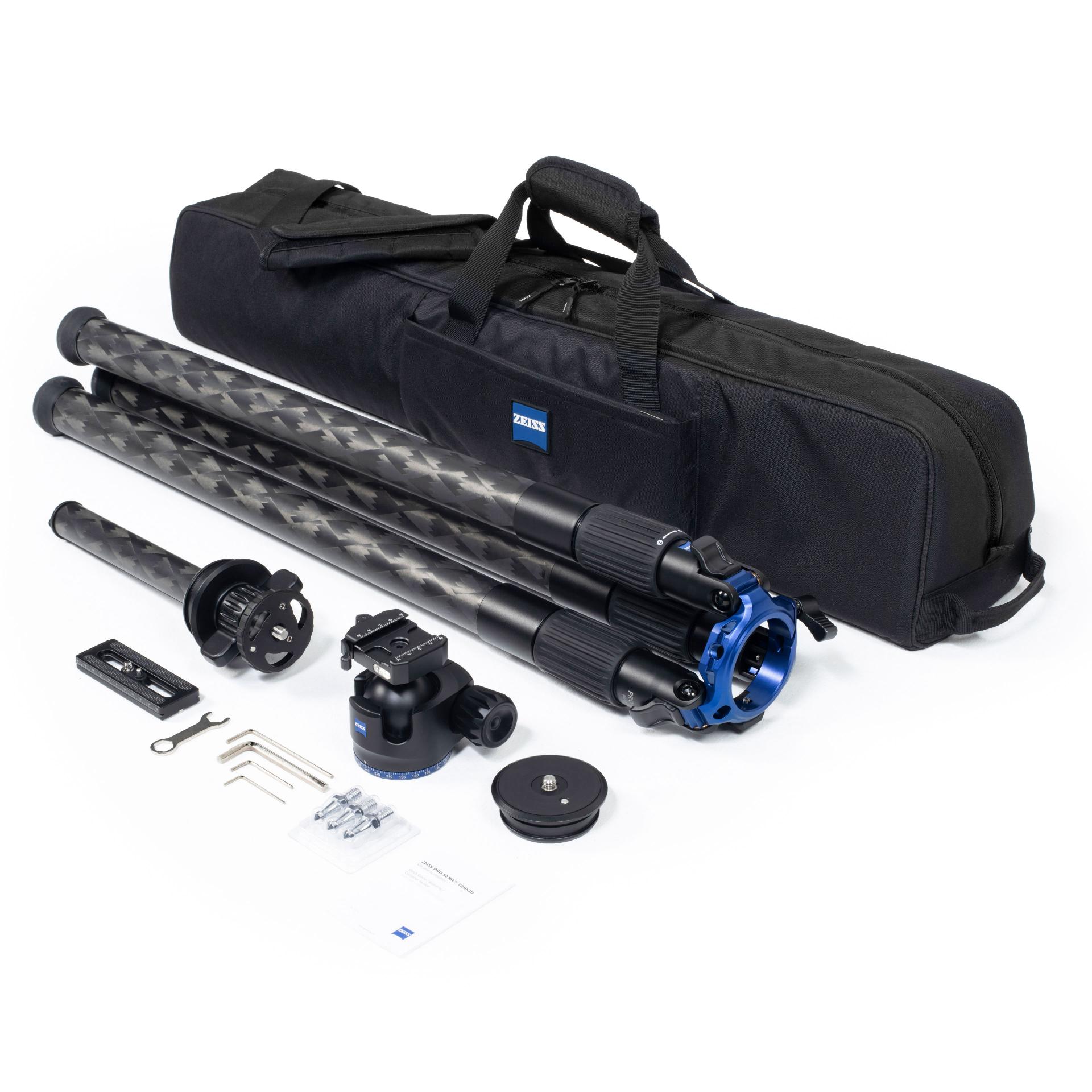

    With Ballhead L-55

What's included in the kit?

  • MAX-DUTY Tripod
  • Ballhead V-60 or Ballhead L-55
  • Removable Center Column
  • Flat Plate Adapter with 3/8” Stud
  • 1/4-20 Extended Adapter Plate
  • Tripod Bag with Shoulder Strap
  • Tool Kit
  • Spiked Feet
  • Quick Guide

Technical Data

ZEISS Pro-Series Tripod Kits
  • Head Type

    Ballhead V-60

    Weight (No Head, No Center Column)

    4.0 kg | 9.0 lbs

    Weight (With Head, No Center Column)

    5.2 kg | 11.4 lbs

    Weight (With Head, With Center Column)

    5.5 kg | 12.1 lbs

    Extended Height (No Head)

    173 cm | 67.9"

    Extended Height (With Head)

    187 cm | 71.5"

    Compressed Length (With Head, With Center Column)

    101 cm | 39.8"

    Maximum Load

    30 kg | 66 lbs

    Leg Tube Diameters

    44 mm | 40 mm | 36 mm

    Leg Angles

    24° | 55° | 85°

    Leg Sections

    3

    Locking Mechanism

    Twist Lock

    Center Column

    Extendable and Detachable

  • Head Type

    Ballhead L-55

    Weight (No Head, No Center Column)

    4.0 kg | 9.0 lbs

    Weight (With Head, No Center Column)

    5.0 kg | 11.0 lbs

    Weight (With Head, With Center Column)

    5.3 kg | 11.8 lbs

    Extended Height (No Head)

    173 cm | 67.9"

    Extended Height (With Head)

    184 cm | 69.7"

    Compressed Length (With Head, With Center Column)

    99 cm | 38"

    Maximum Load

    30 kg | 66 lbs

    Leg Tube Diameters

    44 mm | 40 mm | 36 mm

    Leg Angles

    24° | 55° | 85°

    Leg Sections

    3

    Locking Mechanism

    Twist Lock

    Center Column

    Extendable and Detachable

Garantito per 10 anni.

Quando registri il tuo treppiede, attivi automaticamente la nostra garanzia di 10 anni.

Teste e accessori coordinati

Kit treppiede ZEISS Pro-Series

Black ZEISS tripod head with a precision ball joint, pan handle, and quick-release mounting plate.
Black ZEISS tripod head with a precision ball joint, pan handle, and quick-release mounting plate.

Testa a sfera V-60

La testa a sfera ZEISS Pro-Series V-60 è estremamente versatile e offre un'ampia gamma di angoli di inclinazione e regolazioni composte. L'angolo di inclinazione fino a 115° è fluido e preciso, consentendo di trovare l'angolazione perfetta in ogni occasione. La resistenza al movimento della testa può essere facilmente adattata per adattarsi ai diversi pesi dei vari dispositivi montati.

Black ZEISS tripod ball head with adjustment knobs, mounting plate, and leveling indicators.
Black ZEISS tripod ball head with adjustment knobs, mounting plate, and leveling indicators.

Testa a sfera L-55

La testa a sfera ZEISS Pro-Series L-55 è una testa a sfera popolare, affidabile e stabile. Con il suo design familiare e a basso profilo, offre fino a 90° di regolazione totale per i dispositivi montati. La testa funziona in modo fluido, con regolazioni precise, rendendo facile trovare la posizione perfetta per l'ottica o il dispositivo montato.

Black ZEISS tripod head with a built-in handle grip and quick-release plate attachment.
Black ZEISS tripod head with a built-in handle grip and quick-release plate attachment.

Testa di livellamento Q-75

La testa di livellamento Q-75 offre un accesso rapido. È compatibile con Arca-Swiss e include un adattatore da 75 mm. La regolazione con maniglia singola è dotata di un gancio esteso per una maggiore praticità.

Black padded neck strap with adjustable side straps and a central ZEISS logo on the front.
Black padded neck strap with adjustable side straps and a central ZEISS logo on the front.

Borsa per accessori

La borsa per accessori ZEISS è stata progettata per aggiungere un peso supplementare al treppiede per una maggiore stabilità, soprattutto in condizioni di vento o quando si utilizza un'attrezzatura più pesante. È anche una soluzione pratica per riporre temporaneamente l'attrezzatura aggiuntiva.

Precision camera mounting rail system with integrated spirit level and adjustable components, featuring the ZEISS logo.
Precision camera mounting rail system with integrated spirit level and adjustable components, featuring the ZEISS logo.

Binario multi-dispositivo

Il binario multi-dispositivo ZEISS è un accessorio versatile che consente di fissare più dispositivi contemporaneamente alla testa del treppiede. Grazie alla compatibilità con Arca-Swiss e 1/4-20, è possibile fissare in modo sicuro una varietà di dispositivi come telemetri, cannocchiali, binocoli, termocamere e altro ancora. Ciò lo rende la soluzione ideale per massimizzare la funzionalità e l'efficienza della configurazione del treppiede.

Black ZEISS mounting clamp with adjustable knob and serrated gripping jaws, designed for secure attachment.
Black ZEISS mounting clamp with adjustable knob and serrated gripping jaws, designed for secure attachment.

Pinza per binocolo

Il pinza per binocolo ZEISS è adatto alla maggior parte dei binocoli di tutte le dimensioni e di tutte le marche, compresi quelli senza attacco per treppiede. Il morsetto è dotato di una manopola di regolazione ergo-friendly sviluppata appositamente per garantire velocità e facilità d'uso. La regolazione sovradimensionata funziona bene anche con mani fredde o guantate e consente un sistema di fissaggio molto sicuro. Questo accessorio, se abbinato a una testa compatibile con Arca-Swiss, permette di osservare in modo stabile anche in condizioni difficili.

Black ZEISS-branded optical instrument accessory with ergonomic grip and adjustment knob, standing upright on a flat base.
Black ZEISS-branded optical instrument accessory with ergonomic grip and adjustment knob, standing upright on a flat base.

Adattatore da treppiede a binocolo 1/4-20

L'adattatore da treppiede a binocolo 1/4-20 ZEISS consente di fissare in modo semplice e veloce il binocolo al treppiede. È dotato di un'interfaccia Arca-Swiss che garantisce un collegamento sicuro alla testa del treppiede. Il design offre una presa comoda per una maneggevolezza e un controllo senza sforzo. L'adattatore è compatibile con i seguenti binocoli ZEISS: ZEISS Victory SFL, ZEISS Conquest HDX, ZEISS Conquest HD, ZEISS Terra ED 42.

Black ZEISS camera mounting clamp with textured grip surfaces, adjustment knob, and central screw hole.
Black ZEISS camera mounting clamp with textured grip surfaces, adjustment knob, and central screw hole.

Pinza per fucile

Il pinza per fucile ZEISS offre un fissaggio semplice, rapido e sicuro per il fucile. Aiuta a garantire la stabilità dell'arma, l'inseguimento e il posizionamento preciso dei colpi in varie situazioni di tiro. La manopola ergo-friendly migliora la presa e il controllo della regolazione per garantire un appoggio sicuro e affidabile per l'arma. Inoltre, gli utenti finali trovano questo accessorio utile in vari modi quando hanno bisogno di fissare o sostenere un oggetto specifico sul campo.
