ZEISS Fotografia

Obiettivi ZEISS Batis

Padroneggiare ogni situazione.

Gli obiettivi autofocus ZEISS Batis sono progettati su misura per le fotocamere mirrorless full frame di Sony e offrono un autofocus rapido e silenzioso, protezione dalla polvere e dalle intemperie e un display OLED all'avanguardia per la distanza e la profondità di campo.

  • Autofocus veloce e silenzioso
  • Guarnizione per la protezione antipolvere e antispruzzo
  • Display OLED innovativo
  • A SONY camera is displayed alongside five interchangeable ZEISS Batis lenses arranged in a row on a white background.

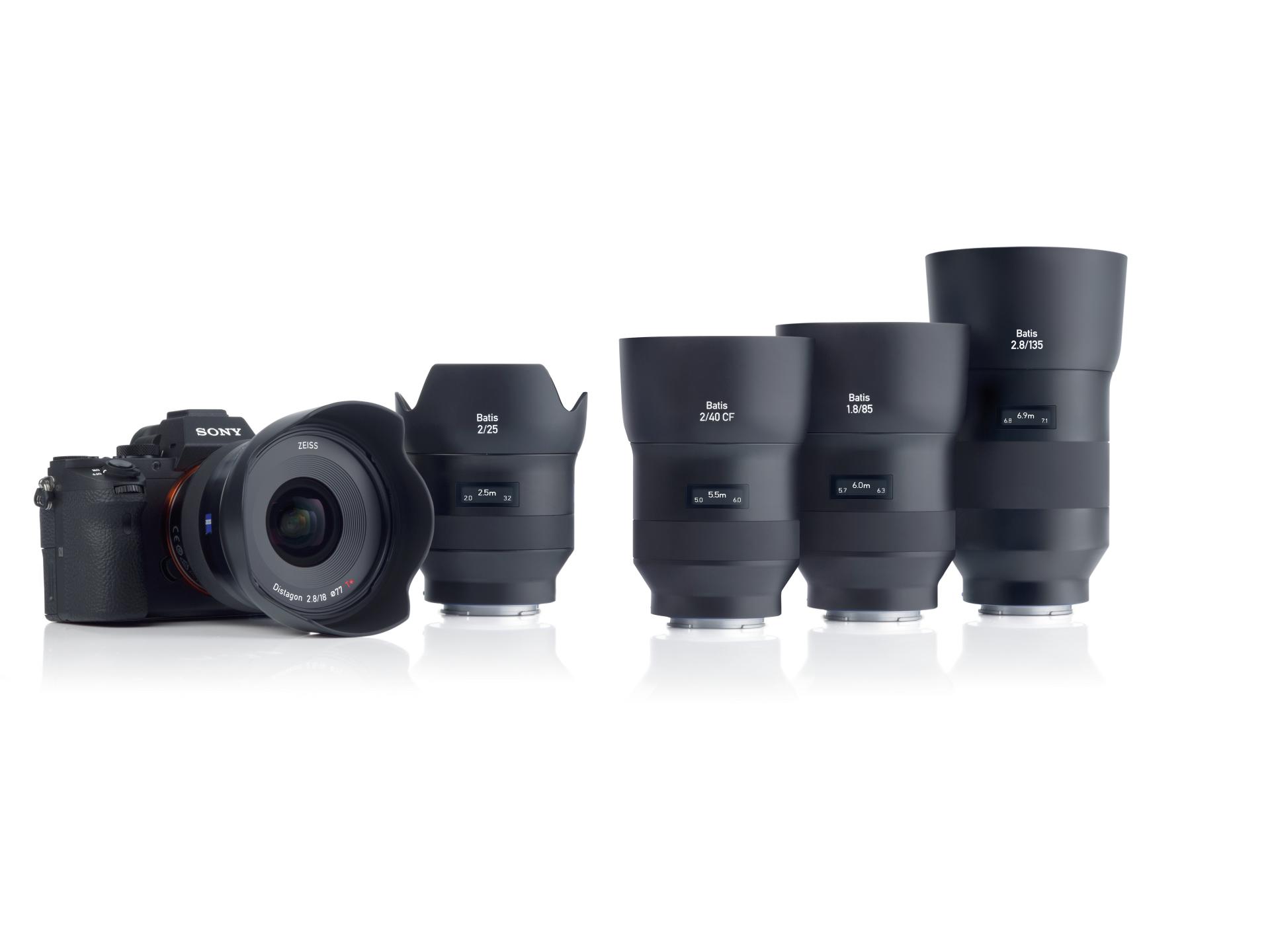

    A SONY camera is displayed alongside five interchangeable ZEISS Batis lenses arranged in a row on a white background.

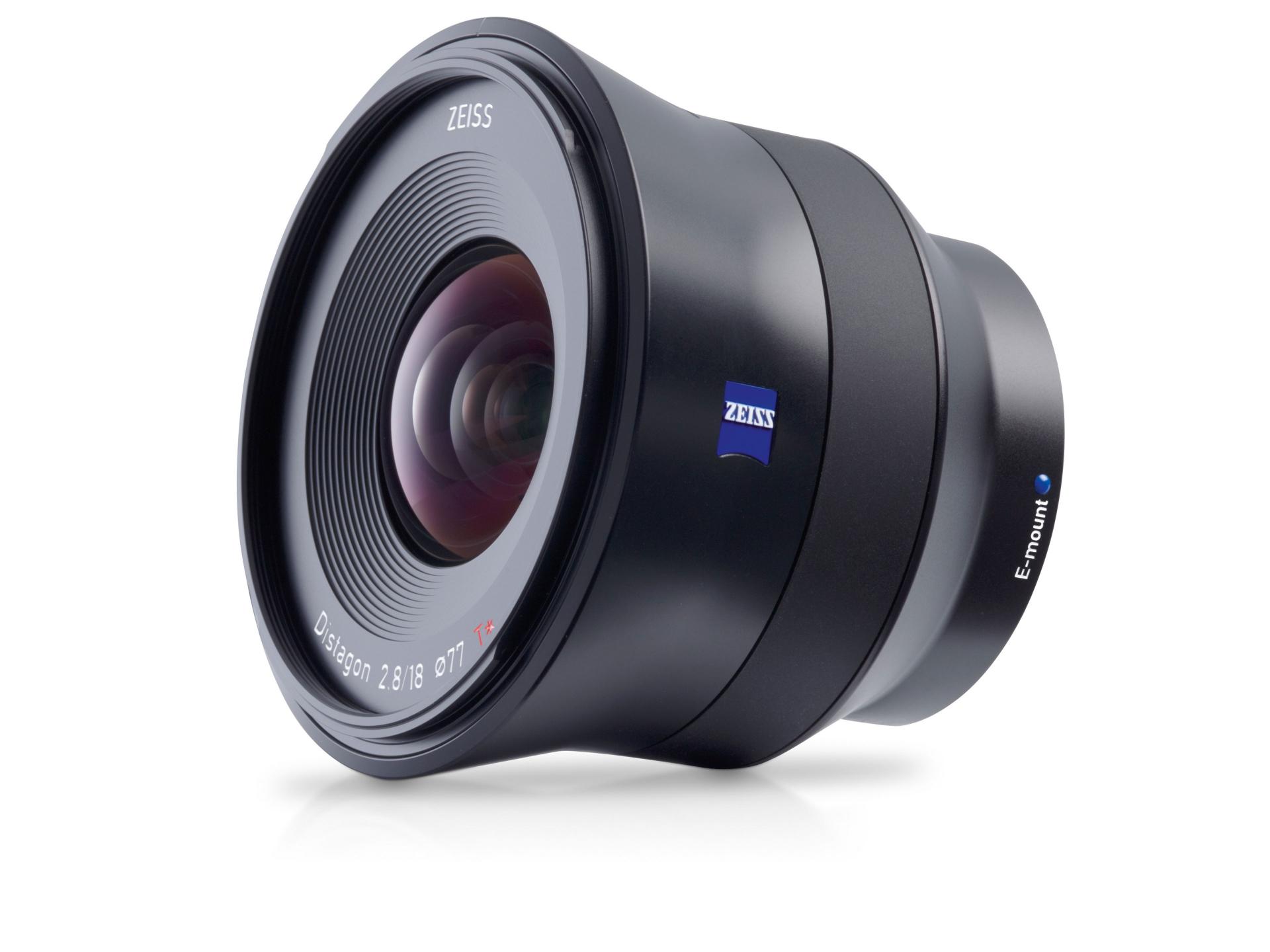

  • Wide-angle ZEISS Batis camera lens with E-mount and prominent ZEISS branding, displayed on a white background.
    Wide-angle ZEISS Batis camera lens with E-mount and prominent ZEISS branding, displayed on a white background.

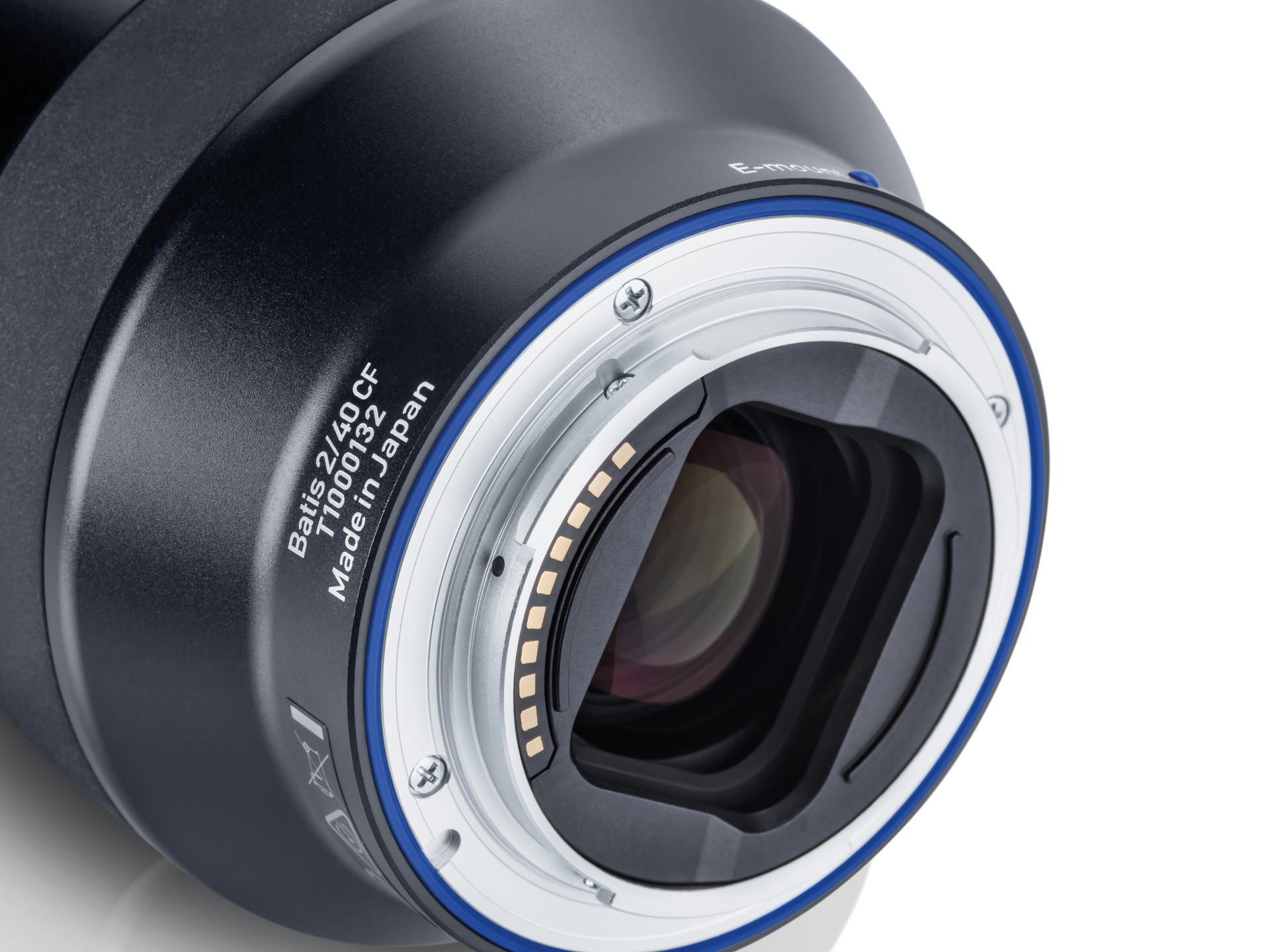

  • Close-up view of the rear mount and electronic contacts of a ZEISS Batis 2/40 CF camera lens.
    Close-up view of the rear mount and electronic contacts of a ZEISS Batis 2/40 CF camera lens.

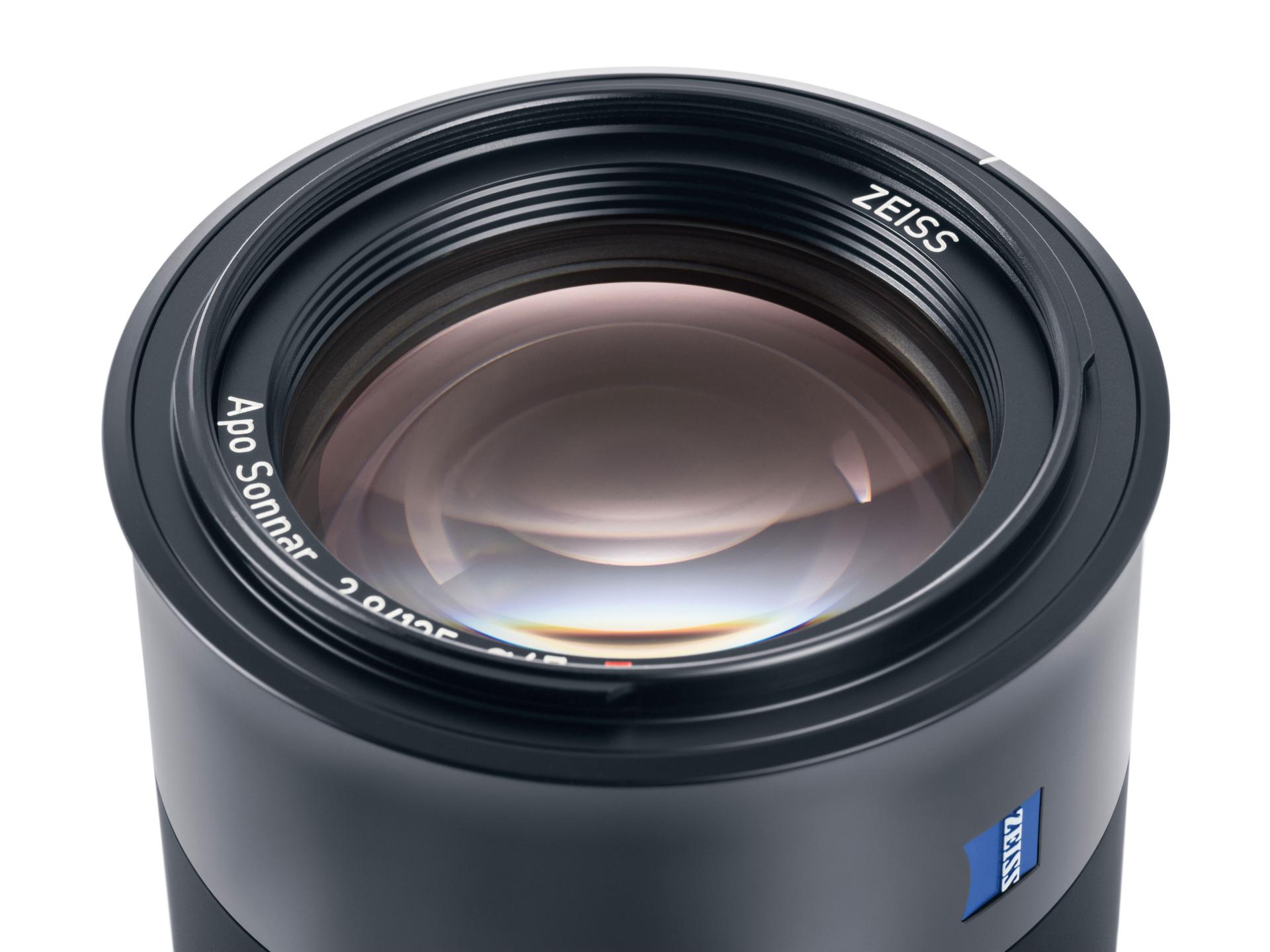

  • Close-up view of a ZEISS Apo Sonnar 2/135 camera lens with visible branding and lens details.
    Close-up view of a ZEISS Apo Sonnar 2/135 camera lens with visible branding and lens details.

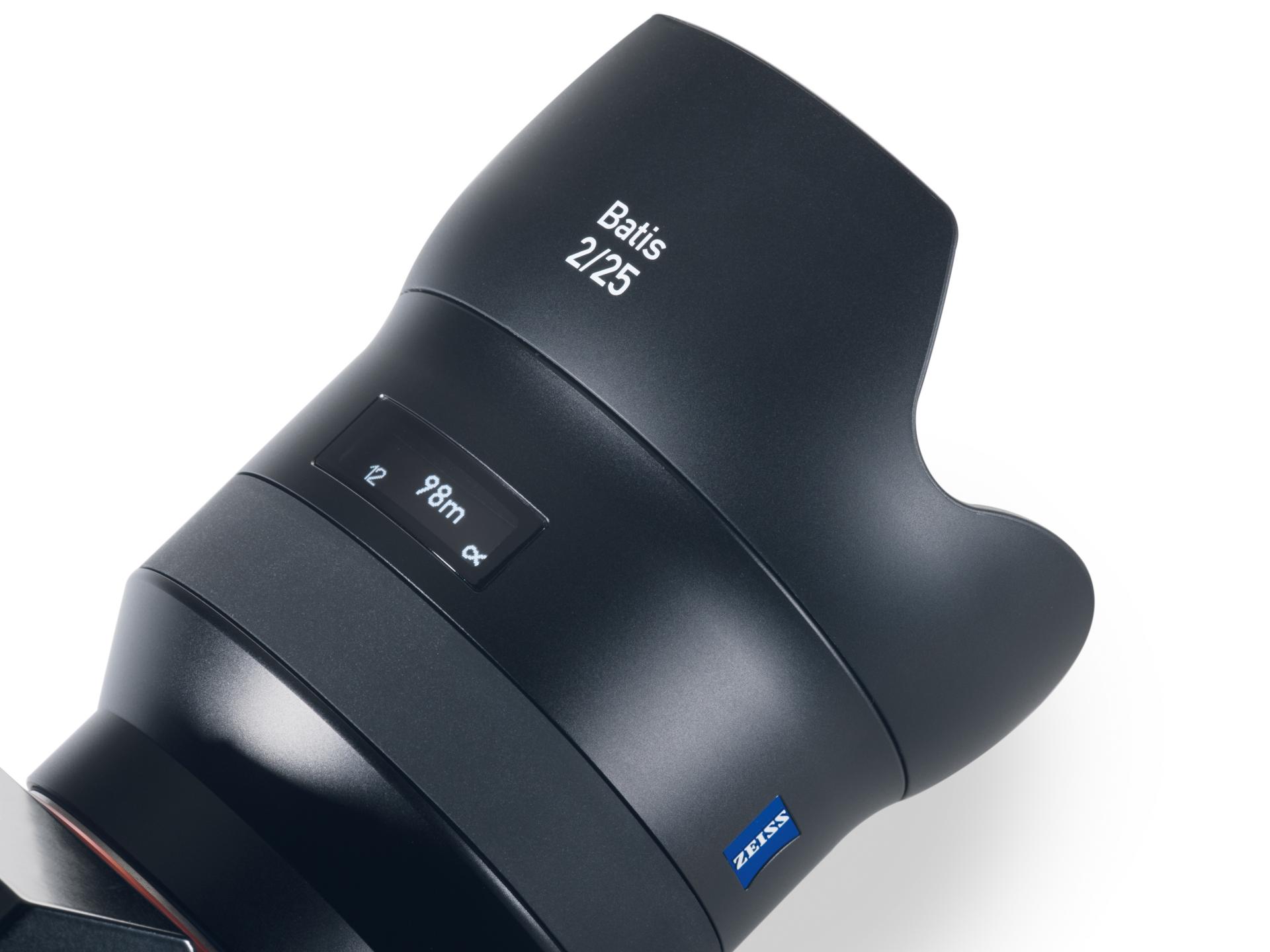

  • Close-up view of a ZEISS Batis 2/25 camera lens featuring a digital display and sleek black finish.
    Close-up view of a ZEISS Batis 2/25 camera lens featuring a digital display and sleek black finish.

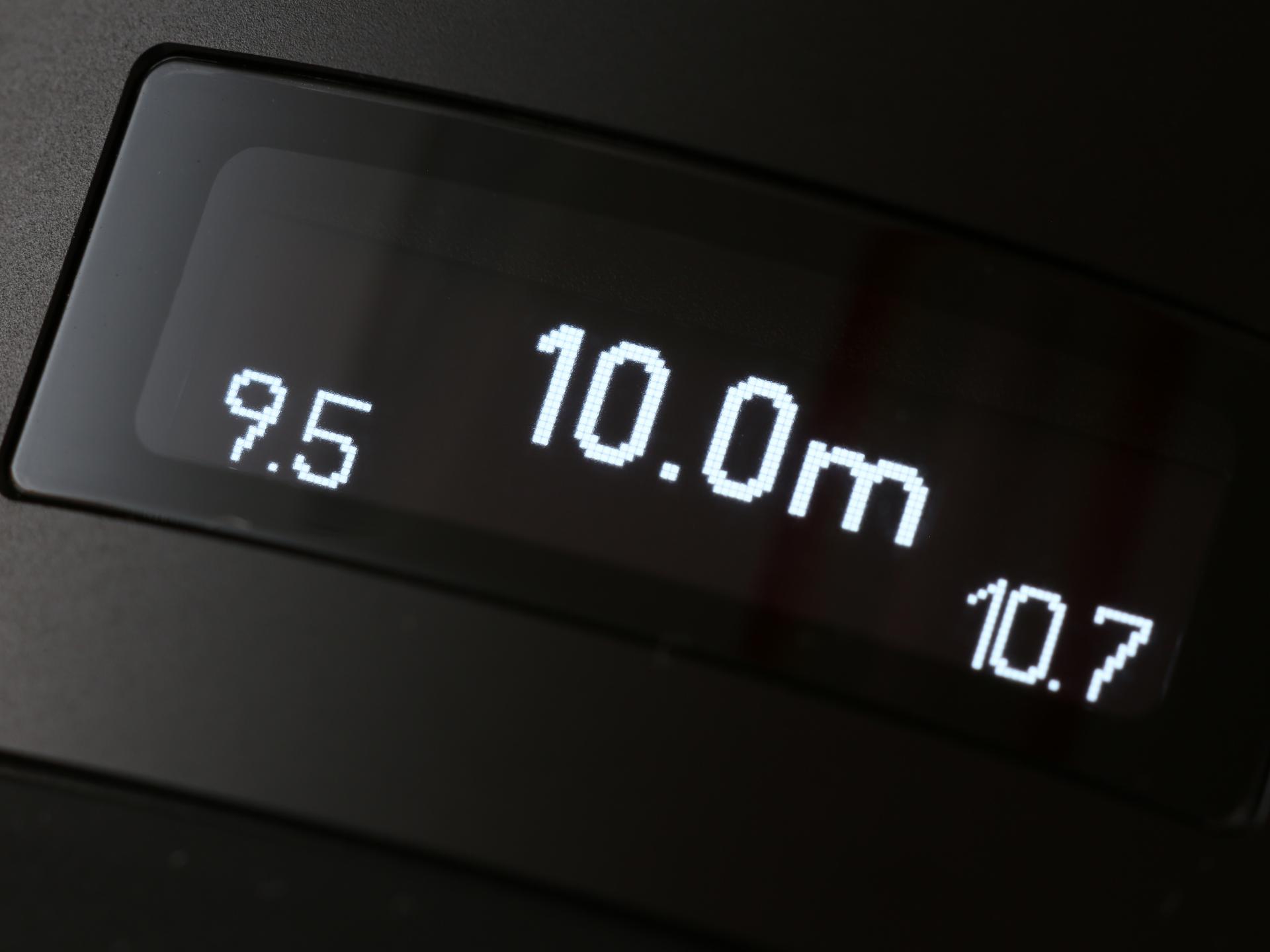

  • Digital display on a ZEISS device showing distance measurements of 9.5, 10.0m, and 10.7.
    Digital display on a ZEISS device showing distance measurements of 9.5, 10.0m, and 10.7.

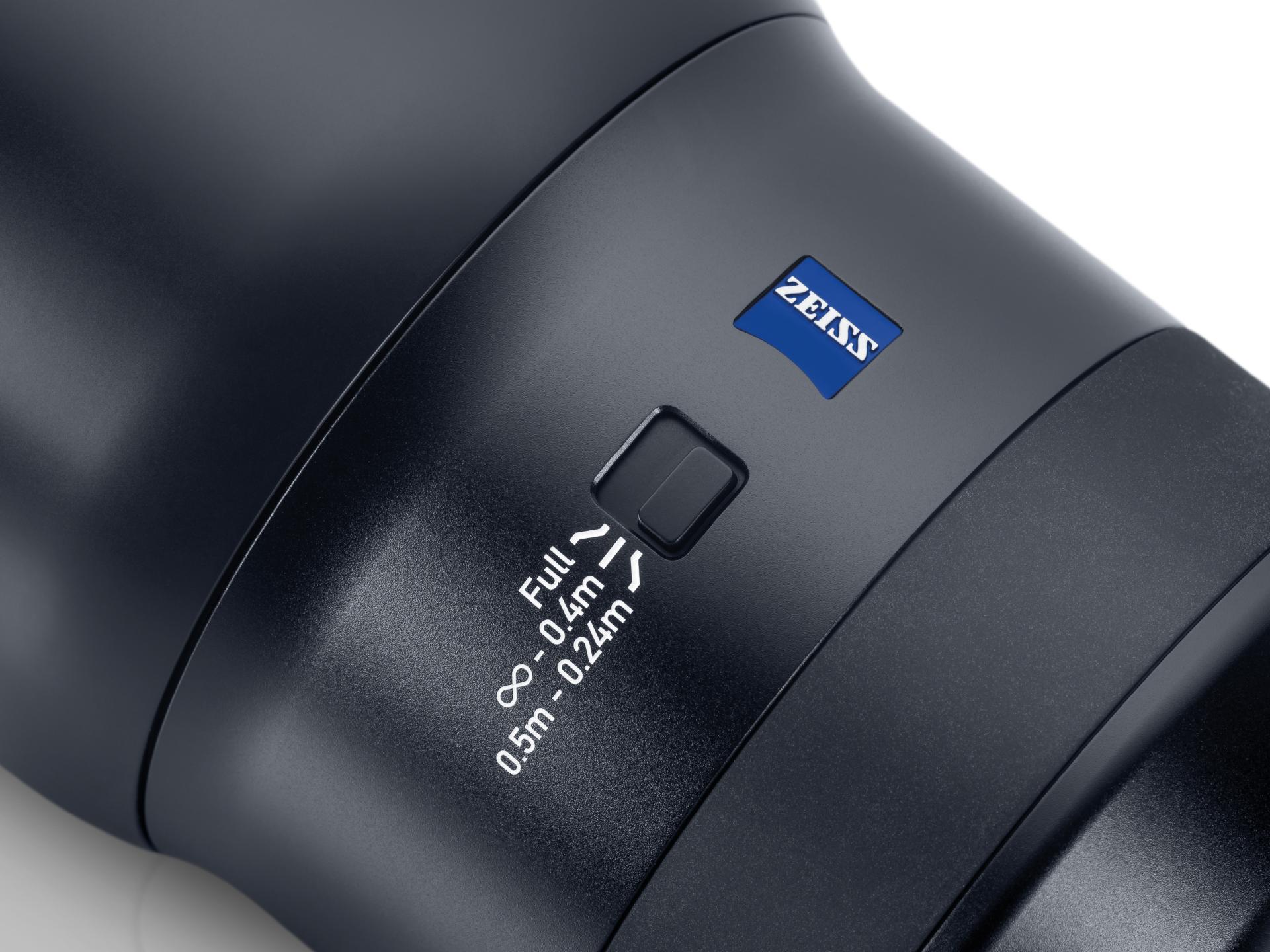

  • Close-up of a ZEISS camera lens showing a focus range switch with distance settings and the ZEISS logo.
    Close-up of a ZEISS camera lens showing a focus range switch with distance settings and the ZEISS logo.

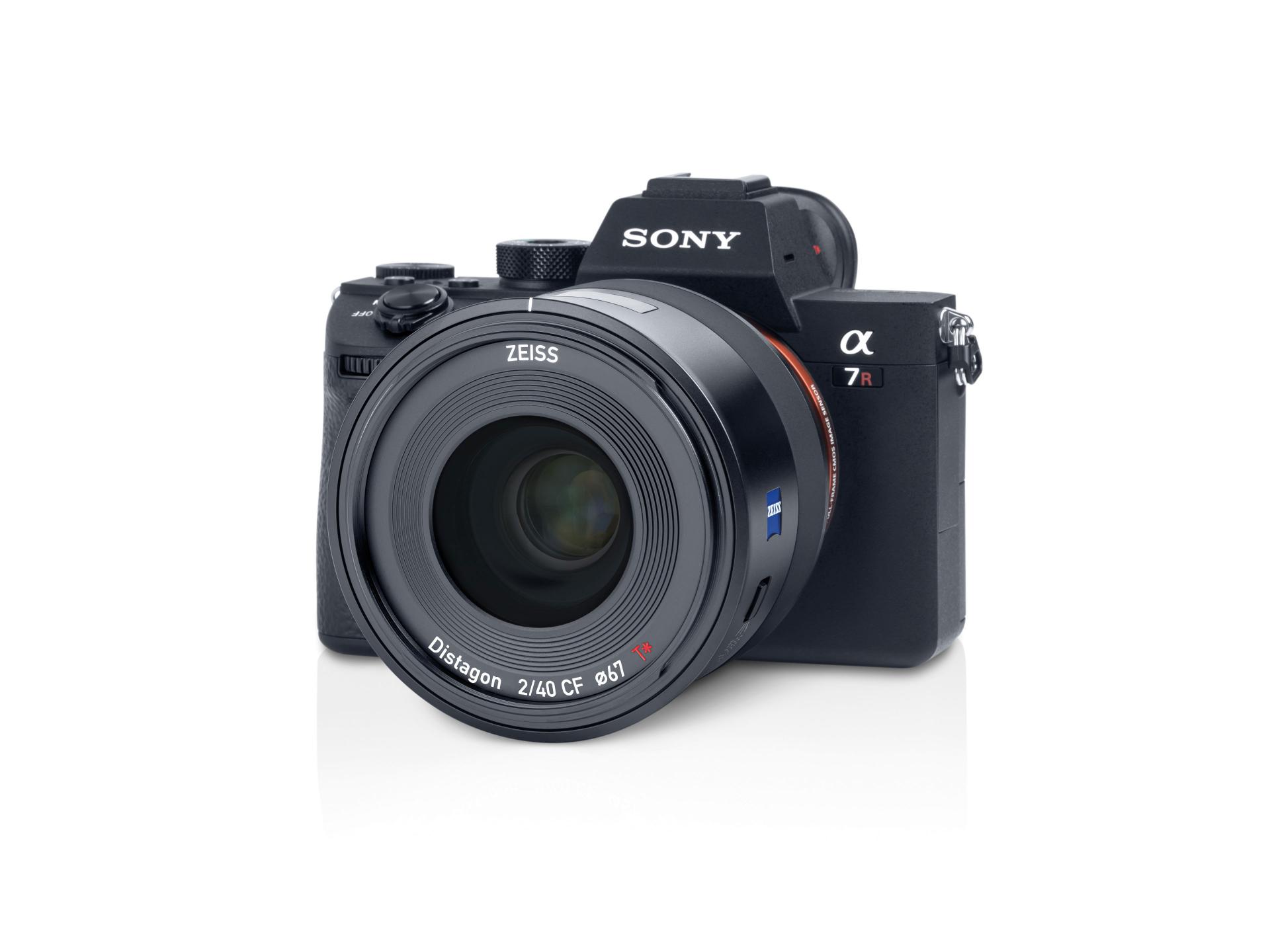

  • A SONY Alpha 7R camera equipped with a ZEISS Distagon 2/40 CF lens.
    A SONY Alpha 7R camera equipped with a ZEISS Distagon 2/40 CF lens.

Gli obiettivi autofocus ZEISS Batis sono stati sviluppati appositamente per le fotocamere mirrorless full frame di Sony. Sono stati adattati per funzionare con la fotocamera e formare un sistema compatto e leggero che non compromette le prestazioni. Gli obiettivi sono completamente compatibili con tutte le fotocamere con attacco E e offrono non solo un autofocus veloce e silenzioso, ma anche protezione dalla polvere e dalle intemperie. Per la fotografia creativa, l'innovativo display OLED mostra la distanza e la profondità di campo per garantire che il campo di messa a fuoco possa essere sempre impostato perfettamente.

Le lunghezze focali fisse ad alta velocità della famiglia ZEISS Batis offrono immagini impeccabili grazie al loro design ottico completamente rinnovato. Il leggendario rivestimento antiriflesso ZEISS T*, combinato con oltre 125 anni di esperienza nello sviluppo di obiettivi e le più recenti tecnologie, garantisce che ogni momento catturato con un obiettivo ZEISS Batis offra l'eccezionale look ZEISS.

L'autofocus veloce e silenzioso garantisce una messa a fuoco di alta precisione in ogni situazione. Potrete inoltre beneficiare di eccellenti prestazioni dell'immagine in un sistema compatto. Ora siete perfettamente attrezzati per il futuro e la fotografia di nuova generazione!


Modelli disponibili

Obiettivi ZEISS Batis

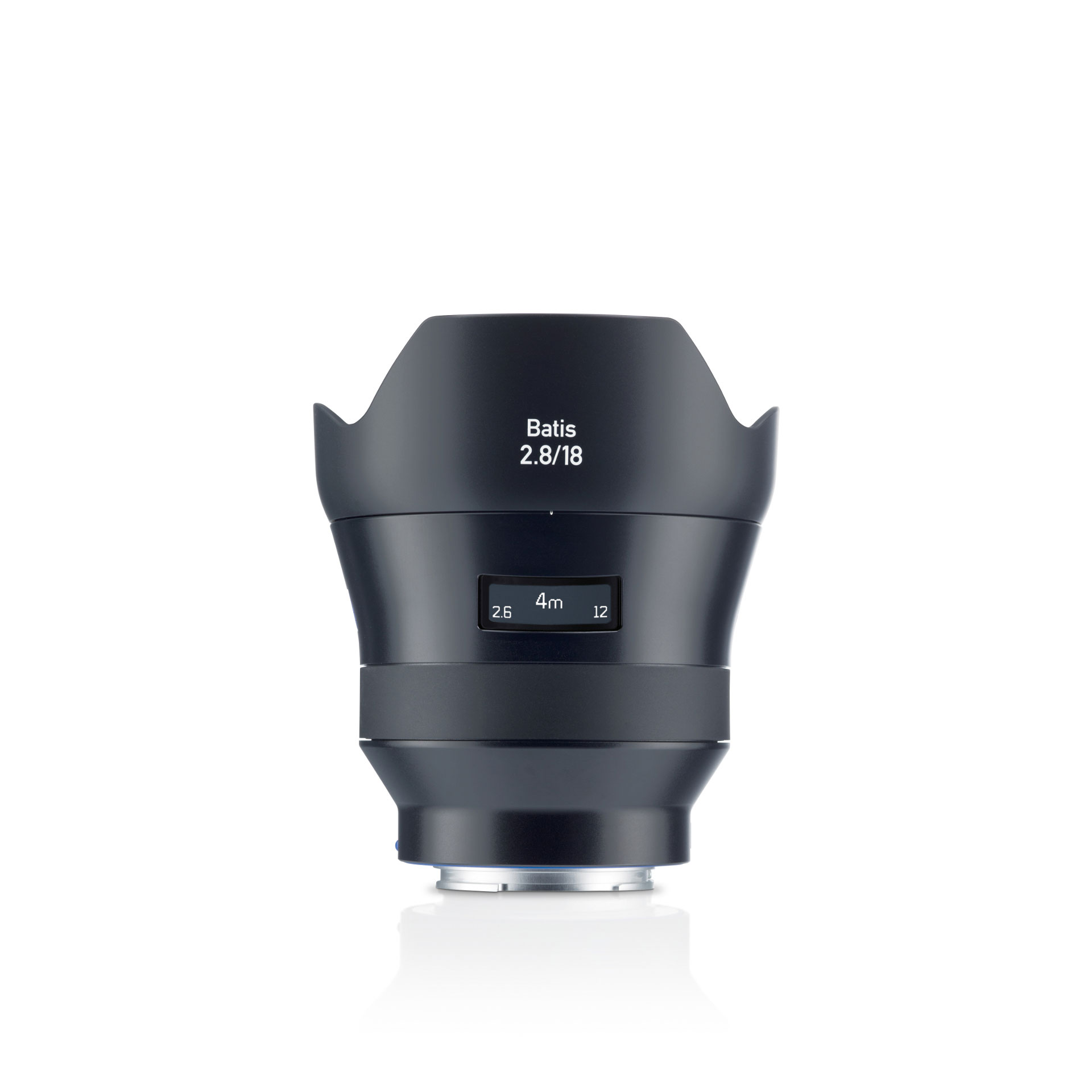

  • Front view of a ZEISS Batis 2.8/18 wide-angle camera lens with an OLED display showing focus distance.
    Batis 2.8/18

    Campo di messa a fuoco:
    0.25 m (9.8 ") – ∞
    Distanza di lavoro libera:
    0.17 m (6.7 ") – ∞
    Stabilizzazione dell’immagine:

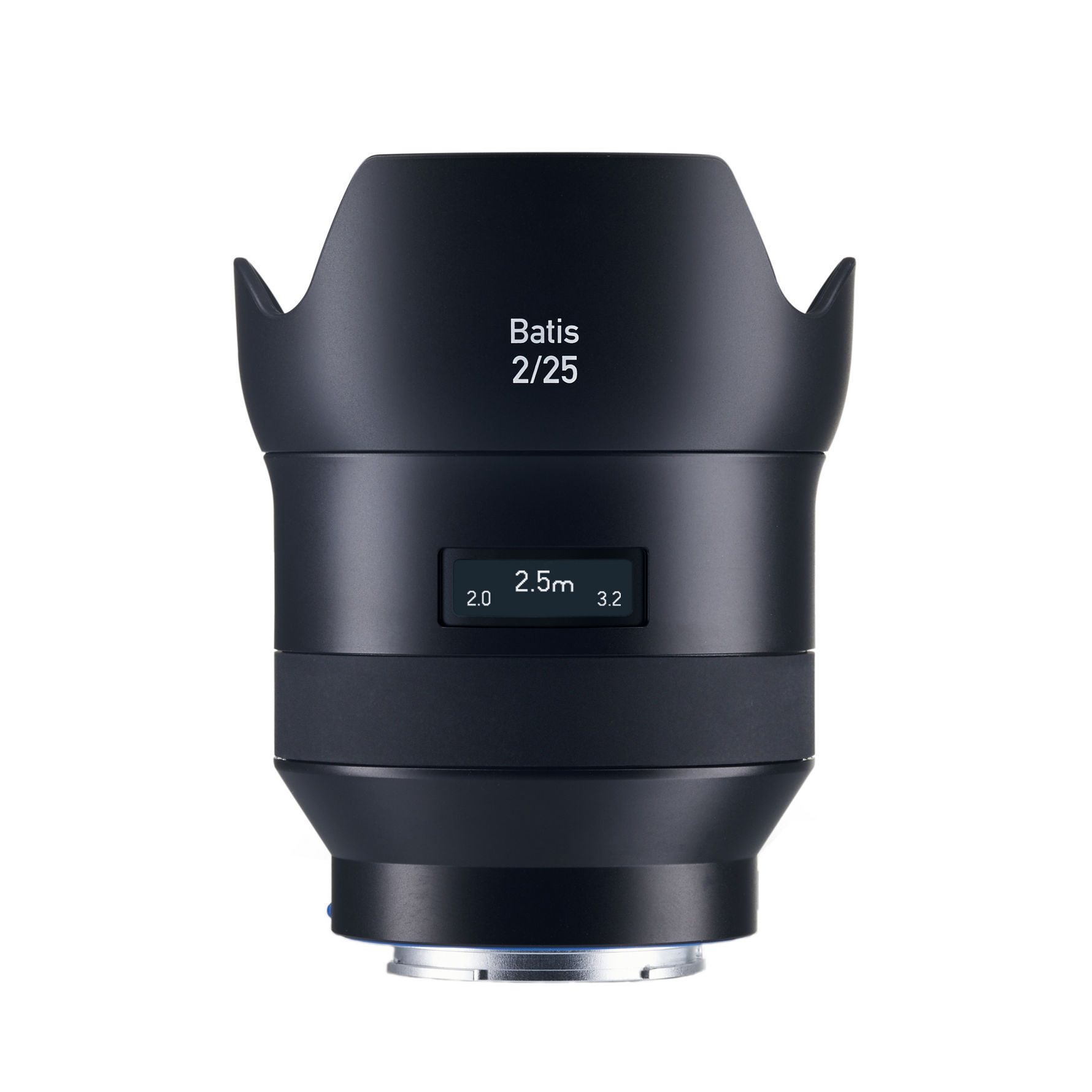

  • Front view of a ZEISS Batis 2/25 camera lens with a built-in OLED display and lens hood attached.

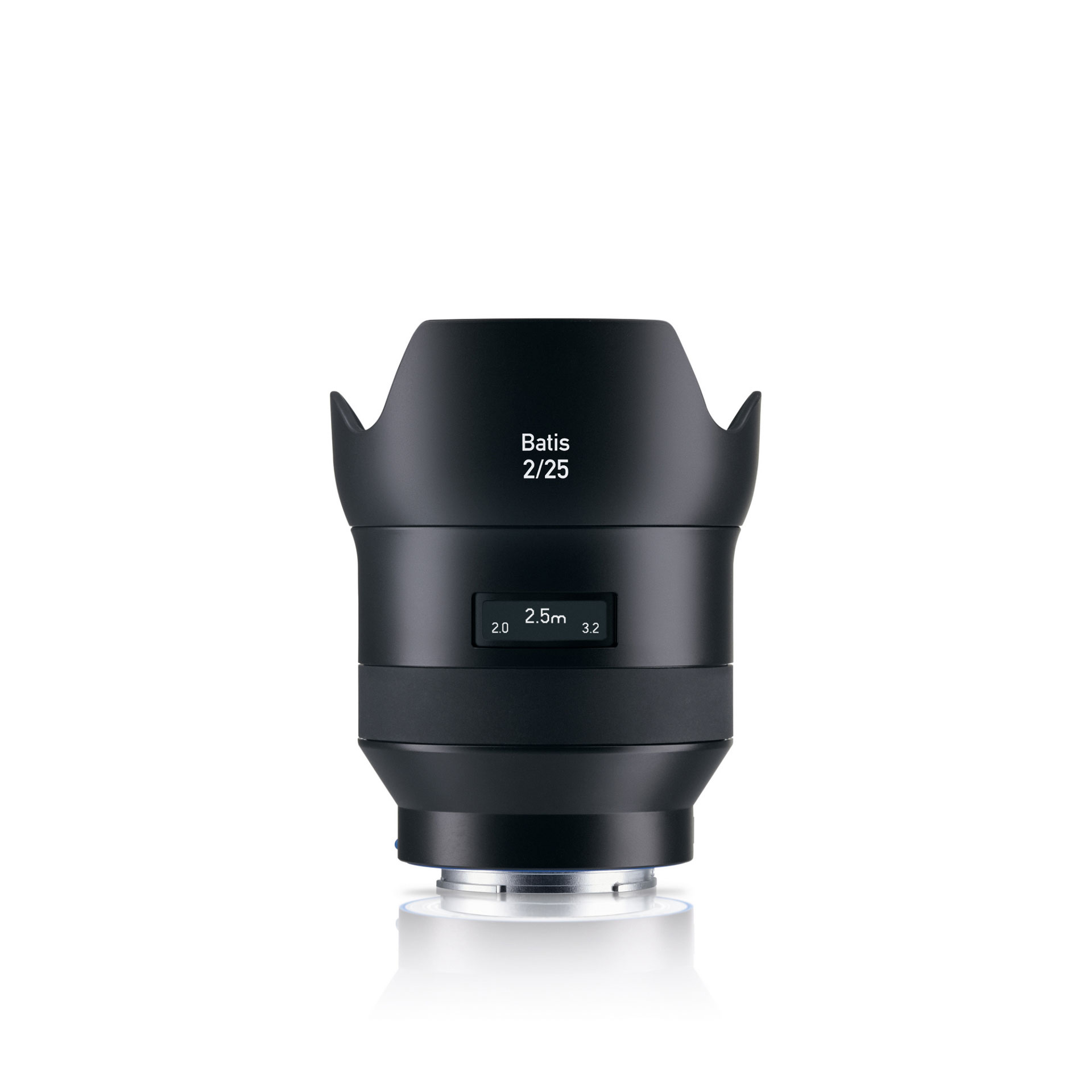

    Batis 2/25

    Campo di messa a fuoco:
    0.20 m (7.87 ") – ∞
    Distanza di lavoro libera:
    0.13 m (5.12 ") – ∞
    Stabilizzazione dell’immagine:

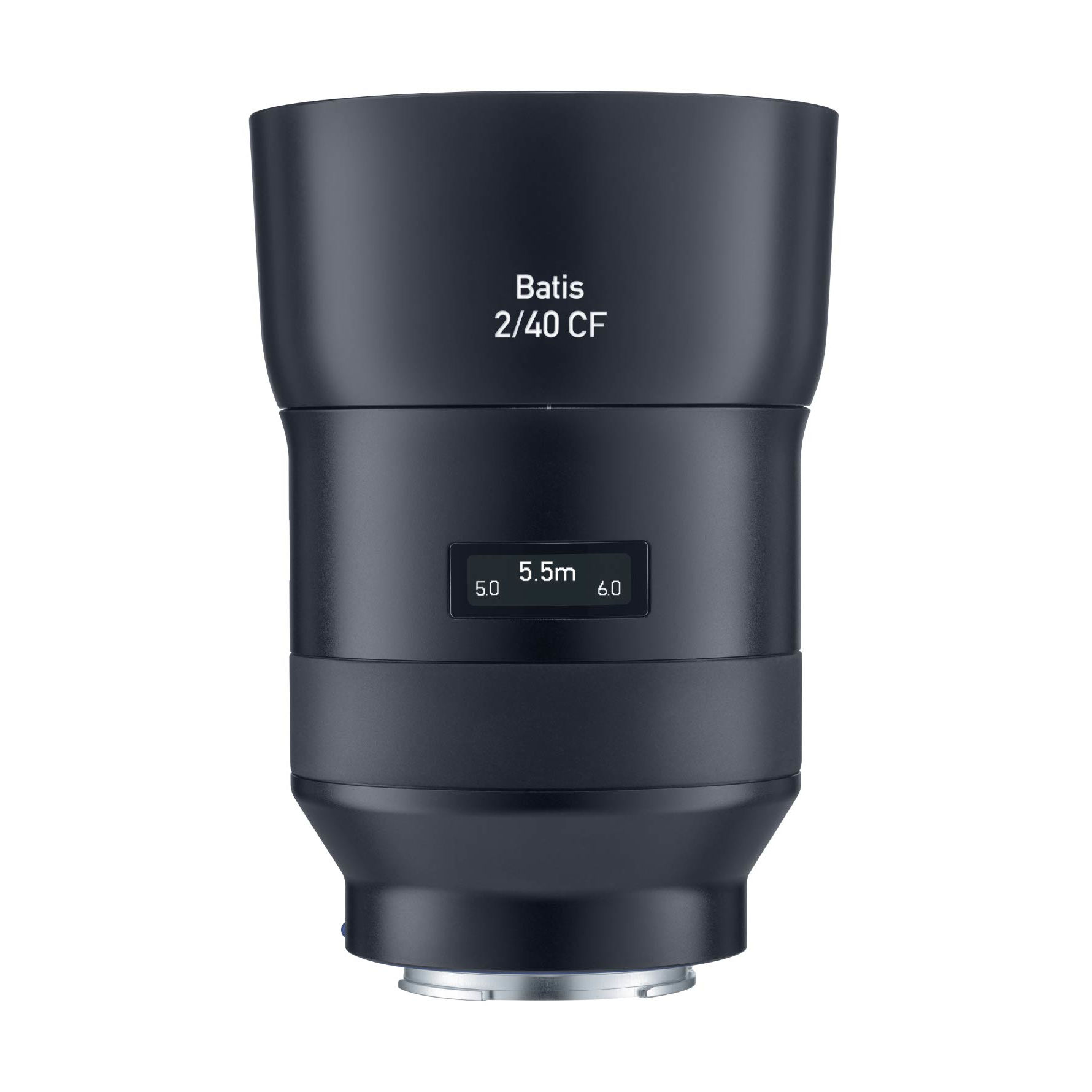

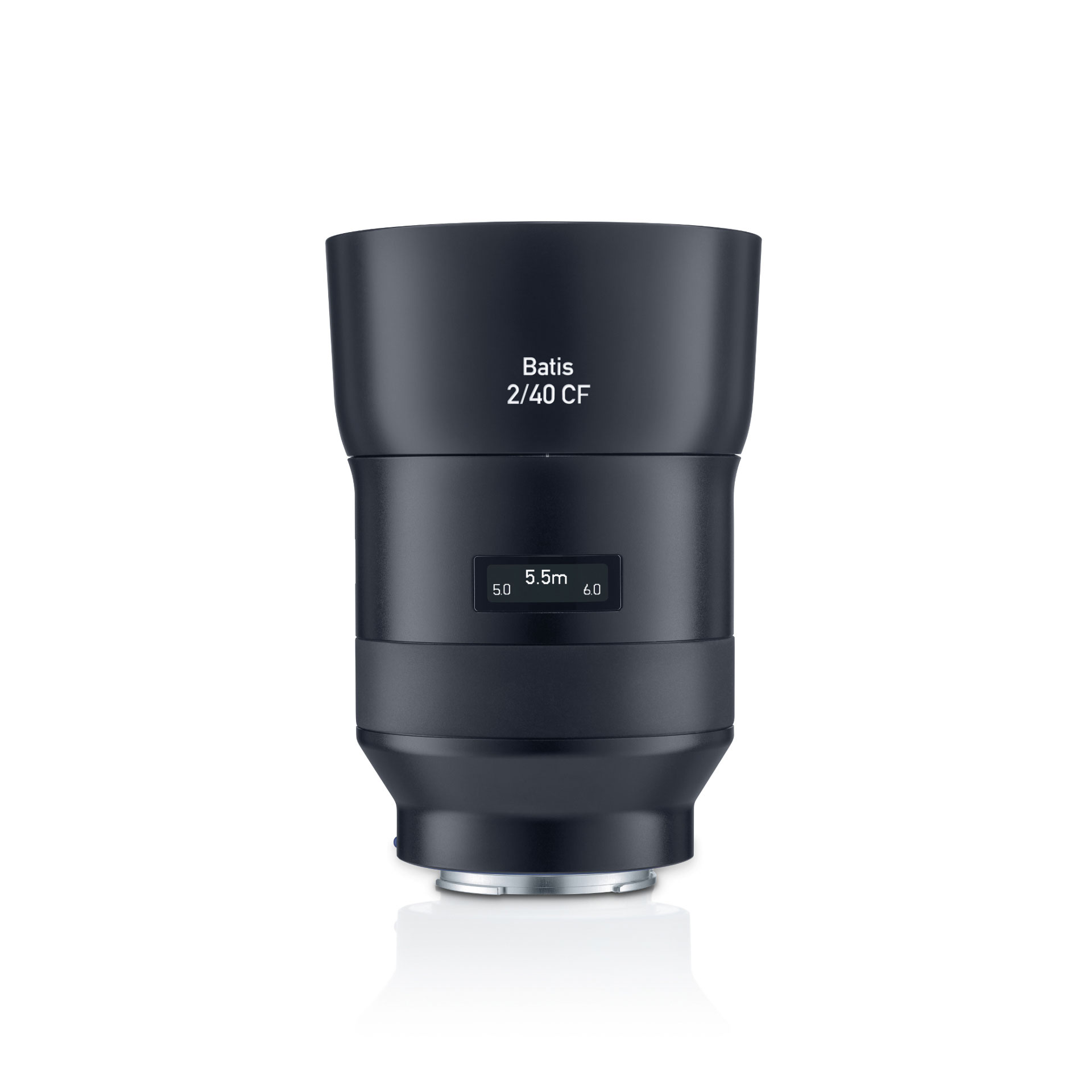

  • A ZEISS Batis 2/40 CF camera lens in matte black finish with an OLED display showing focus distance and aperture.
    Batis 2/40 CF

    Campo di messa a fuoco:
    0.24 m (9.45 ft) – ∞
    Distanza di lavoro libera:
    0.14 m (5.51 ") – ∞
    Stabilizzazione dell’immagine:

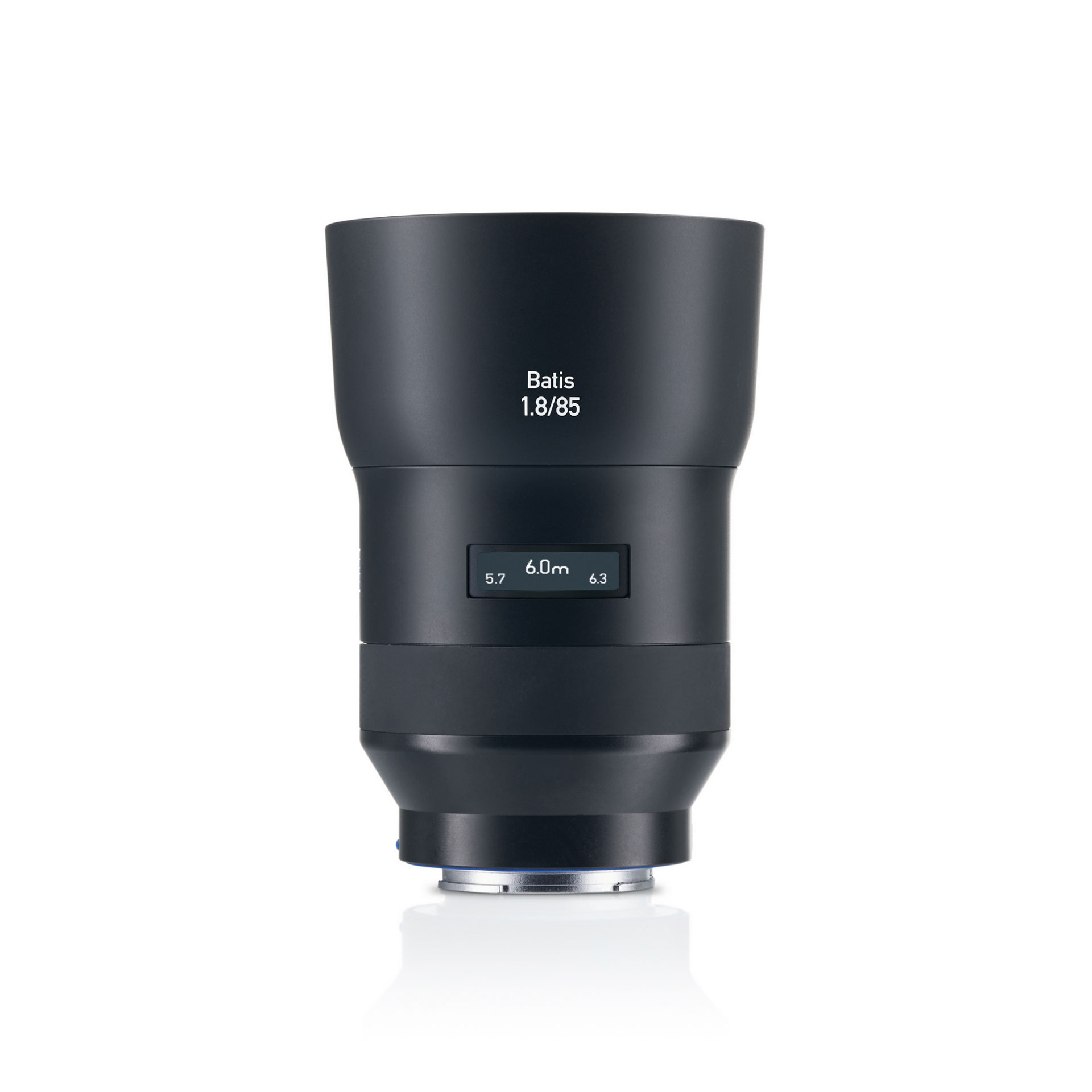

  • Black ZEISS Batis 85mm f/1.8 camera lens standing upright with an OLED display showing focus distance.
    Batis 1.8/85

    Campo di messa a fuoco:
    0.80 m (31.50 ft) – ∞
    Distanza di lavoro libera:
    0.71 m (27.95 ft) – ∞
    Stabilizzazione dell’immagine:
    +

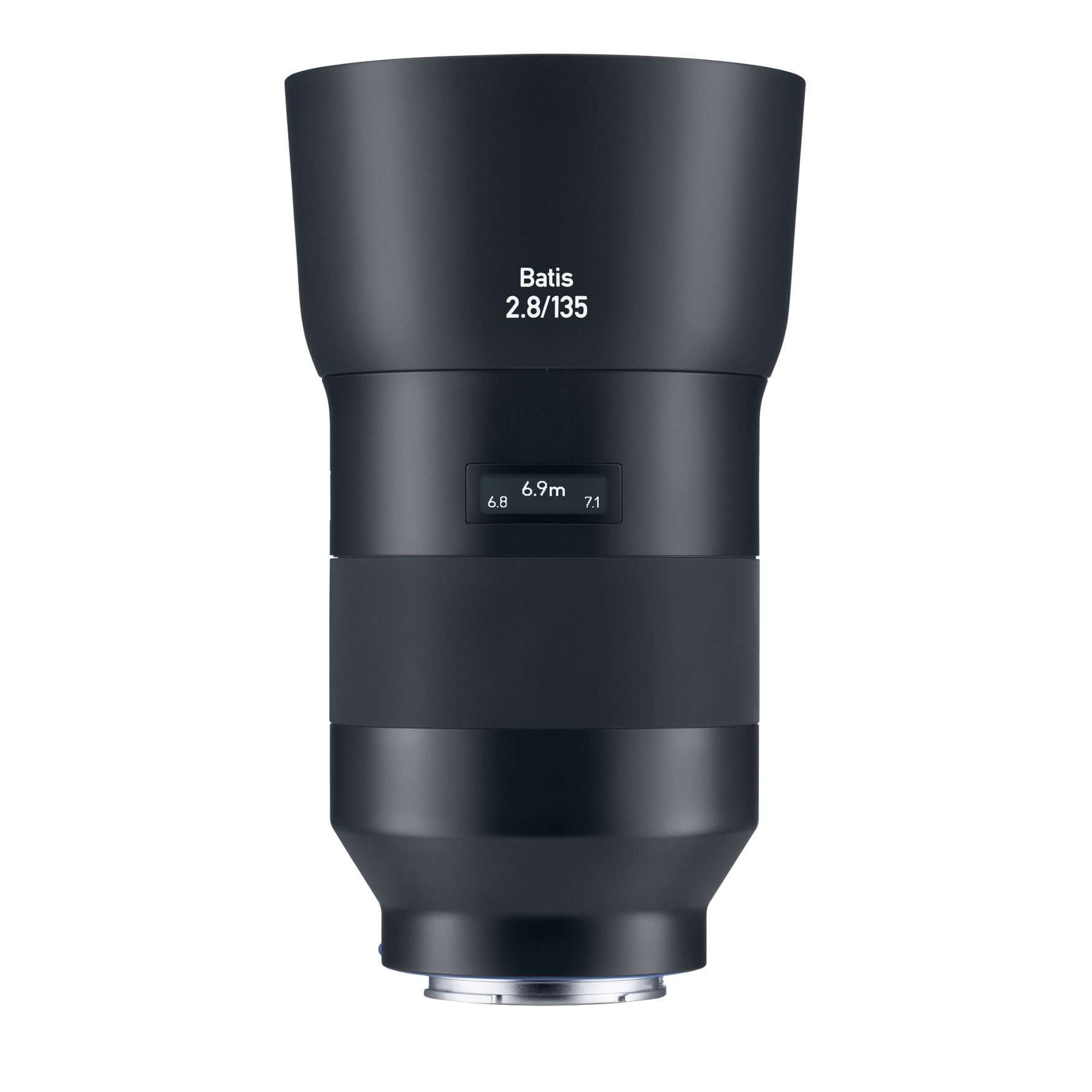

  • ZEISS Batis 2.8/135 camera lens shown in a front-facing view with a digital distance scale display.
    Batis 2.8/135

    Campo di messa a fuoco:
    0.87 m (34.25 ft) – ∞
    Distanza di lavoro libera:
    0.74 m (29.13 ft) – ∞
    Stabilizzazione dell’immagine:
    +
A photographer using a ZEISS camera lens captures a wedding couple posing in a scenic desert landscape.
Topher DeLancy

Autofocus uniforme ed affidabile

Il design del sistema di autofocus richiede uno spostamento estremamente preciso di particolari gruppi obiettivo. Il sistema di messa a fuoco degli obiettivi ZEISS è studiato per assicurare un solido meccanismo di autofocus a funzionamento uniforme con le migliori performance di imaging.

A Sony Alpha 7 II camera is shown with a mounted ZEISS Batis 2/18 wide-angle lens.

Obiettivi full frame versatili

Il potente obiettivo per il sistema full frame mirrorless di Sony soddisfa i requisiti più elevati. Nonostante il design compatto, l’immagine soddisfa le aspettative dei fotografi professionisti.

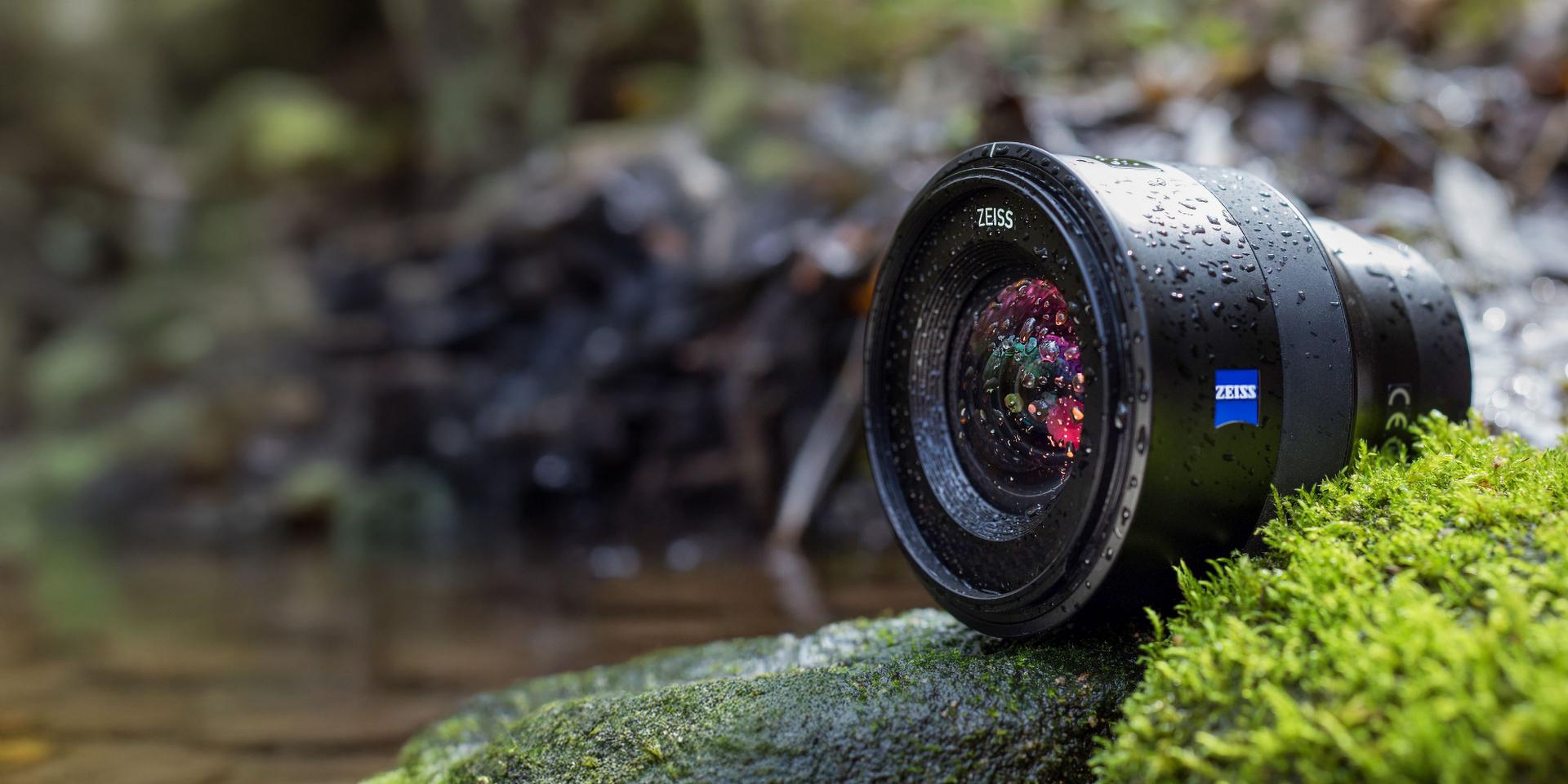

A ZEISS camera lens covered in water droplets rests on a mossy rock beside a stream in a natural outdoor setting.

Guarnizione per la protezione antipolvere e antispruzzo

Grazie al design studiato per proteggere la fotocamera da polvere e spruzzi d’acqua, l’obiettivo è perfettamente adatto per affrontare difficili condizioni outdoor. Inoltre è studiato per un uso intenso per diversi anni.

Close-up of a ZEISS camera lens displaying focus distance and aperture settings on a digital screen.

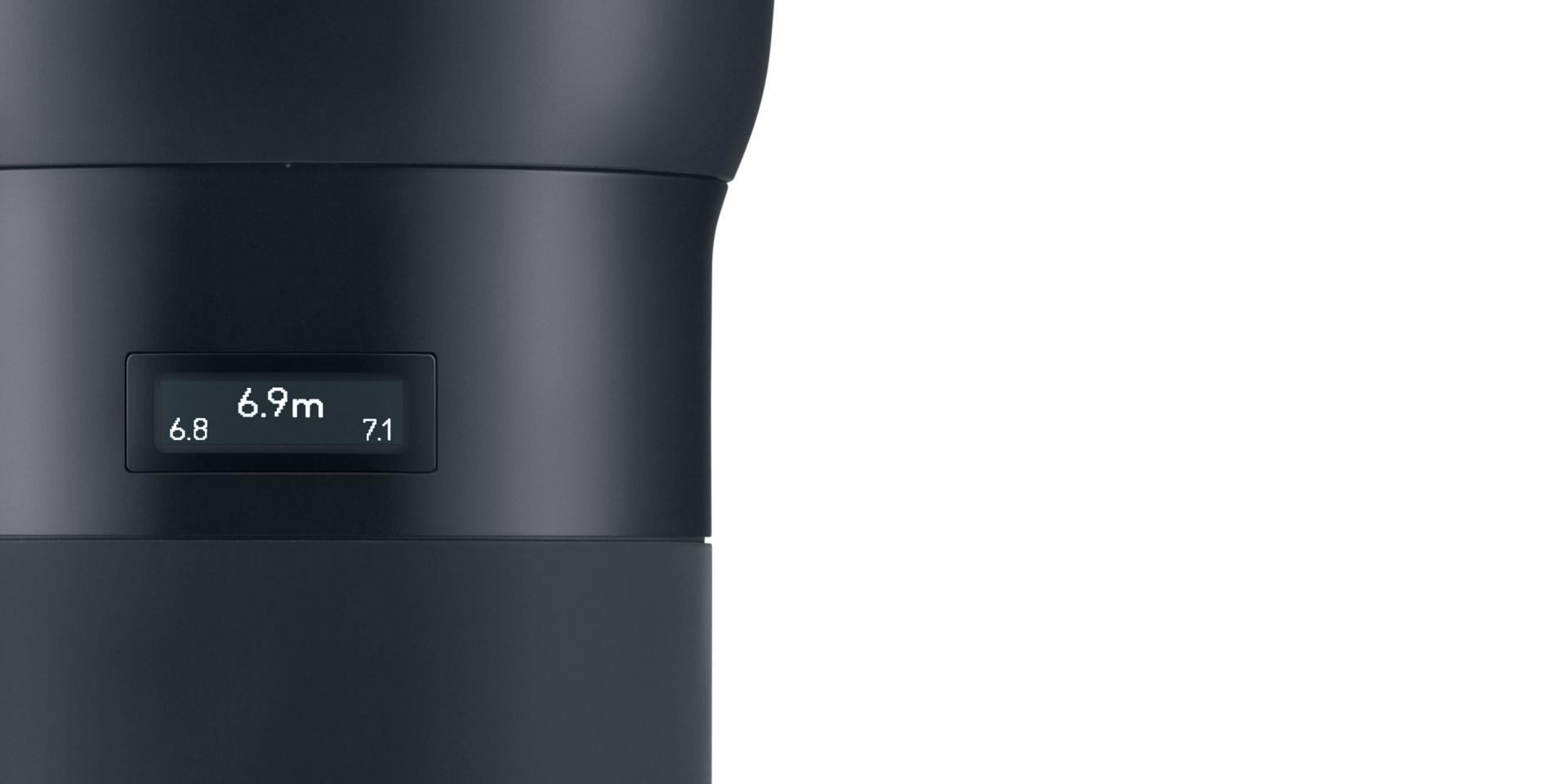

Display OLED innovativo

Per la prima volta, è possibile leggere con precisione la distanza di messa a fuoco e la profondità di campo in modo semplice e intuitivo sul display OLED dell’obiettivo. In particolare, in condizioni di scarsa illuminazione è sempre assicurata un’ottima leggibilità.

A woman in a blue striped shirt looks intently at the camera through palm leaves casting shadows on her face.
Wolf-Peter Steinheißer

Eccellente risoluzione ed elevato contrasto

Colori ricchi e vividi sono essenziali per suscitare impressioni durature. La luce parassita negli obiettivi causerebbe tuttavia uno schiarimento dell'immagine particolarmente visibile nelle aree d'ombra. Il contrasto immagine si riduce e l'immagine appare leggera e sbiadita. Noi abbiamo unito varie e sofisticate tecniche per ridurre la luce parassita non voluta.

A hand delicately lifts a small seashell from the sand, capturing the intricate details of nature that inspire ZEISS precision optics.
Michael Imhof

ZEISS Batis 2/40 CF con funzione Close Focus

La funzione Close Focus (ZF) dello ZEISS Batis 2/40 CF consente di mettere a fuoco con nitidezza oggetti a distanza estremamente ravvicinata: la distanza minima di messa a fuoco, ovvero la distanza minima tra l'oggetto e il sensore della fotocamera, è di soli 24 centimetri. Per garantire una qualità dell'immagine eccezionale a distanza ravvicinata, l'obiettivo si chiude automaticamente quando si trova a breve distanza dall'oggetto. Ciò garantisce che l'obiettivo ZEISS offra l'elevato contrasto e la risoluzione su tutta la gamma di messa a fuoco che gli utenti si aspettano.

Dati tecnici

Obiettivi ZEISS Batis
  • Focal Length

    18 mm

    Aperture Range

    f/2.8 – f/22

    Camera Mount

    Sony E-Mount1

    Format Compatibility

    Full Frame

    Focusing Range

    0.25 m (9.8") – ∞

    Free Working Distance

    0.17 m (6.7") – ∞

    Angular Field2 (diag. horiz. vert.)

    99° | 90° | 67°

    Diameter of Image Field

    43 mm (1.69")

    Coverage at Close Range (MOD)3

    227 x 340 mm (8.9 x 13.4")

    Image Ratio at Minimum Object Distance

    1 : 9.5

    Lens Elements | Groups

    11 | 10

    Flange Focal Distance

    18 mm (0.71")

    Entrance Pupil Position (Front of Image Plane)

    73 mm (2.9")

    Autofocus

    +

    Image Stabilization

    Filter Thread

    M77 x 0.75

    Rotation Angle of Focusing Ring

    Focusing not Mechanically Coupled

    Diameter max.

    100 mm (3.9")

    Diameter of Focusing Ring

    78 mm (3.1")

    Length (With Lens Caps)

    95 mm (3.7")

    Length (Without Lens Caps)

    80 mm (3.1")

    Weight

    330 g (0.74 lbs)

  • Focal Length

    25 mm

    Aperture Range

    f/2 – f/22

    Camera Mount

    Sony E-Mount1

    Format Compatibility

    Full Frame

    Focusing Range

    0.20 m (7.9") – ∞

    Free Working Distance

    0.13 m (5.1") – ∞

    Angular Field2 (diag. horiz. vert.)

    82° | 72° | 51°

    Diameter of Image Field

    43 mm (1.69")

    Coverage at Close Range (MOD)3

    124 x 187 mm (4.9 x 7.4")

    Image Ratio at Minimum Object Distance

    1:5.2

    Lens Elements | Groups

    10 | 8

    Flange Focal Distance

    18 mm (0.71")

    Entrance Pupil Position (Front of Image Plane)

    70 mm (2.7")

    Autofocus

    +

    Image Stabilization

    Filter Thread

    M67 x 0.75

    Rotation Angle of Focusing Ring

    Focusing not Mechanically Coupled

    Diameter max.

    81 mm (3.2")

    Diameter of Focusing ring

    78 mm (3.1")

    Length (With Lens Caps)

    92 mm (3.6")

    Length (Without Lens Caps)

    78 mm (3.1")

    Weight

    335 g (0.74 lbs)

  • Focal Length

    40 mm

    Aperture Range

    f/2 – f/22

    Camera Mount

    Sony E-Mount1

    Format Compatibility

    Full Frame

    Focusing Range

    0.24 m (0.78 ft) – ∞

    Free Working Distance

    0.14 m (0.45 ft) – ∞

    Angular Field2 (diag. horiz. vert.)

    56° | 47° | 33°

    Diameter of Image Field

    43 mm (1.69")

    Coverage at Close Range (MOD)3

    79 x 117 mm (3.1 x 4.6")

    Image Ratio at Minimum Object Distance

    1 : 3.3

    Lens Elements | Groups

    9 | 8

    Flange Focal Distance

    18 mm (0.71")

    Entrance Pupil Position (front of Image Plane)

    75.1 mm (2.96")

    Autofocus

    +

    Image Stabilization

    Filter Thread

    M67 x 0,75

    Rotation Angle of Focusing Ring

    Focusing not Mechanically Coupled

    Diameter max.

    91 mm (3.6")

    Diameter of Focusing Ring

    78 mm (3.1")

    Length (With Lens Caps)

    106 mm (4.2")

    Length (Without Lens Caps)

    93 mm (3.7")

    Weight

    361 g (0.80 lbs)

  • Focal Length

    85 mm

    Aperture Range

    f/1.8 – f/22

    Camera Mount

    Sony E-Mount1

    Format Compatibility

    Full Frame

    Focusing Range

    0.80 m (2.6 ft) – ∞

    Free Working Distance

    0.71 m (2.3 ft) – ∞

    Angular Field2 (diag. horiz. vert.)

    29° | 24° | 16°

    Diameter of Image Field

    43 mm (1.69")

    Coverage at Close Range (MOD)3

    189 x 283 mm (7.4 x 11.1")

    Image Ratio at Minimum Object Distance

    1:7.9

    Lens Elements | Groups

    11 | 8

    Flange Focal Distance

    18 mm (0.71")

    Entrance Pupil Position (Front of Image Plane)

    18 mm (0.72")

    Autofocus

    +

    Image Stabilization

    +

    Filter Thread

    M67 x 0.75

    Rotation Angle of Focusing Ring

    Focusing not mechanically coupled

    Diameter max.

    92 mm (3.6")

    Diameter of Focusing Ring

    78 mm (3.1")

    Length (With Lens Caps)

    105 mm (4.1")

    Length (Without Lens Caps)

    92 mm (3.6")

    Weight

    452 g (1.0 lbs)

  • Focal Length

    135 mm

    Aperture Range

    f/2.8 – f/22

    Camera Mount

    Sony E-Mount1

    Format Compatibility

    Full Frame

    Focusing Range

    0.87 m (2.9 ft) – ∞

    Free Working Distance

    0.74 m (2.4 ft) – ∞

    Angular Field2 (diag. horiz. vert.)

    18° | 15° | 10°

    Diameter of Image Field

    43 mm (1.69")

    Coverage at Close Range (MOD)3

    125 x 185 mm (4.9 x 7.3")

    Image Ratio at Minimum Object Distance

    1:5.3

    Lens Elements | Groups

    14 | 11

    Flange Focal Distance

    18 mm (0.71")

    Entrance Pupil Position (Front of Image Plane)

    6.9 mm (0.27")

    Autofocus

    +

    Image Stabilization

    +

    Filter Thread

    M67 x 0.75

    Rotation Angle of Focusing Ring

    Focusing not Mechanically Coupled

    Diameter max.

    98 mm (3.9")

    Diameter of Focusing Ring

    81 mm (3.2")

    Length (With Lens Caps)

    133 mm (5.2")

    Length (Without Lens Caps)

    120 mm (4.7")

    Weight

    614 g (1.4 lbs)

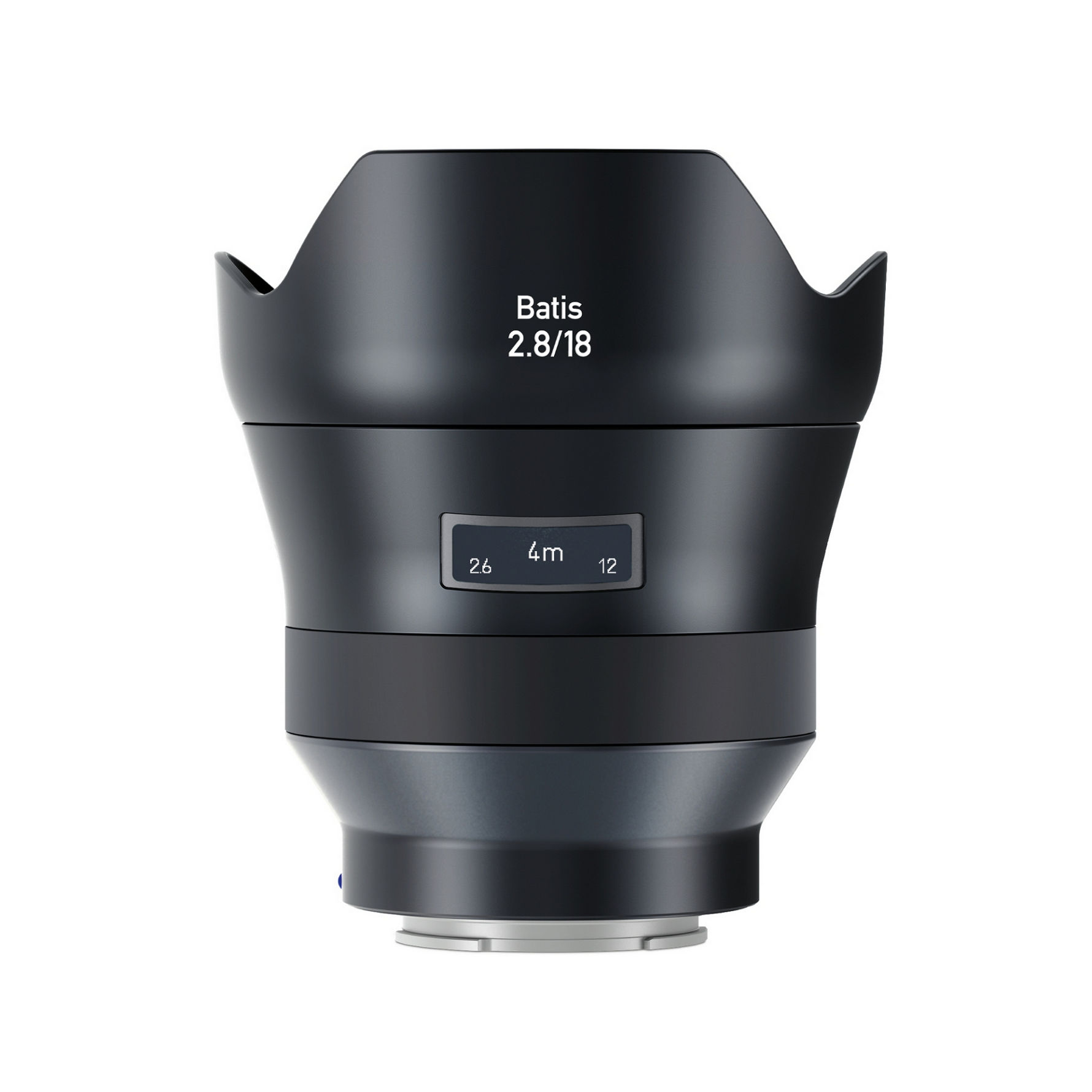

  • Wide-angle ZEISS Batis 2.8/18 camera lens with integrated OLED display showing focus distance and depth of field.

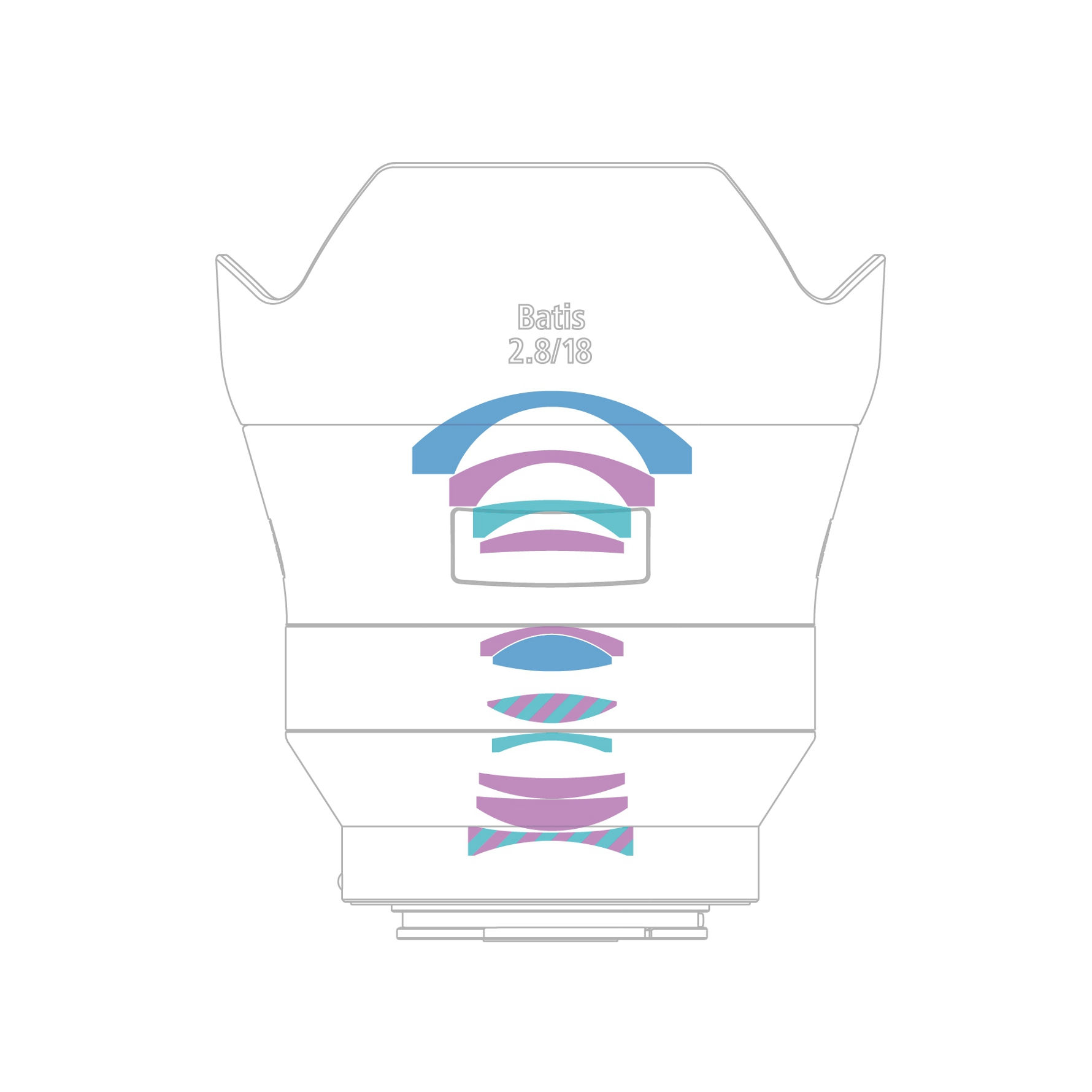

    Cross-sectional illustration of the ZEISS Batis 2.8/18 lens showing internal optical elements.

    ZEISS Batis 2.8/18

    Originariamente ideati per fotocamere SLR che richiedono una lunga distanza focale posteriore per brevi lunghezze focali a causa del box specchio (la distanza tra l'elemento della lente posteriore e il piano della pellicola deve essere considerevolmente più lunga della lunghezza focale), gli obiettivi Distagon (design retrofocus) sono perfetti anche per fotocamere con sistema mirrorless grazie al loro percorso del raggio ottimizzato. Anche con lunghezze focali maggiori, il design ottico Distagon ad alte prestazioni consente una buona correzione costante fino agli angoli dell’immagine e una bassissima curvatura di campo.

    ⬛ Design Distagon

    🟩 Lente con superficie ottica asferica

    🟪 Lente in vetro speciale con dispersione parziale anomala

    ⬛ Elementi asferici e vetro speciale

    ⬛ Design a "elementi flottanti"

  • Front view of the ZEISS Batis 2/25 wide-angle camera lens with an integrated OLED display showing focus distance and depth of field.

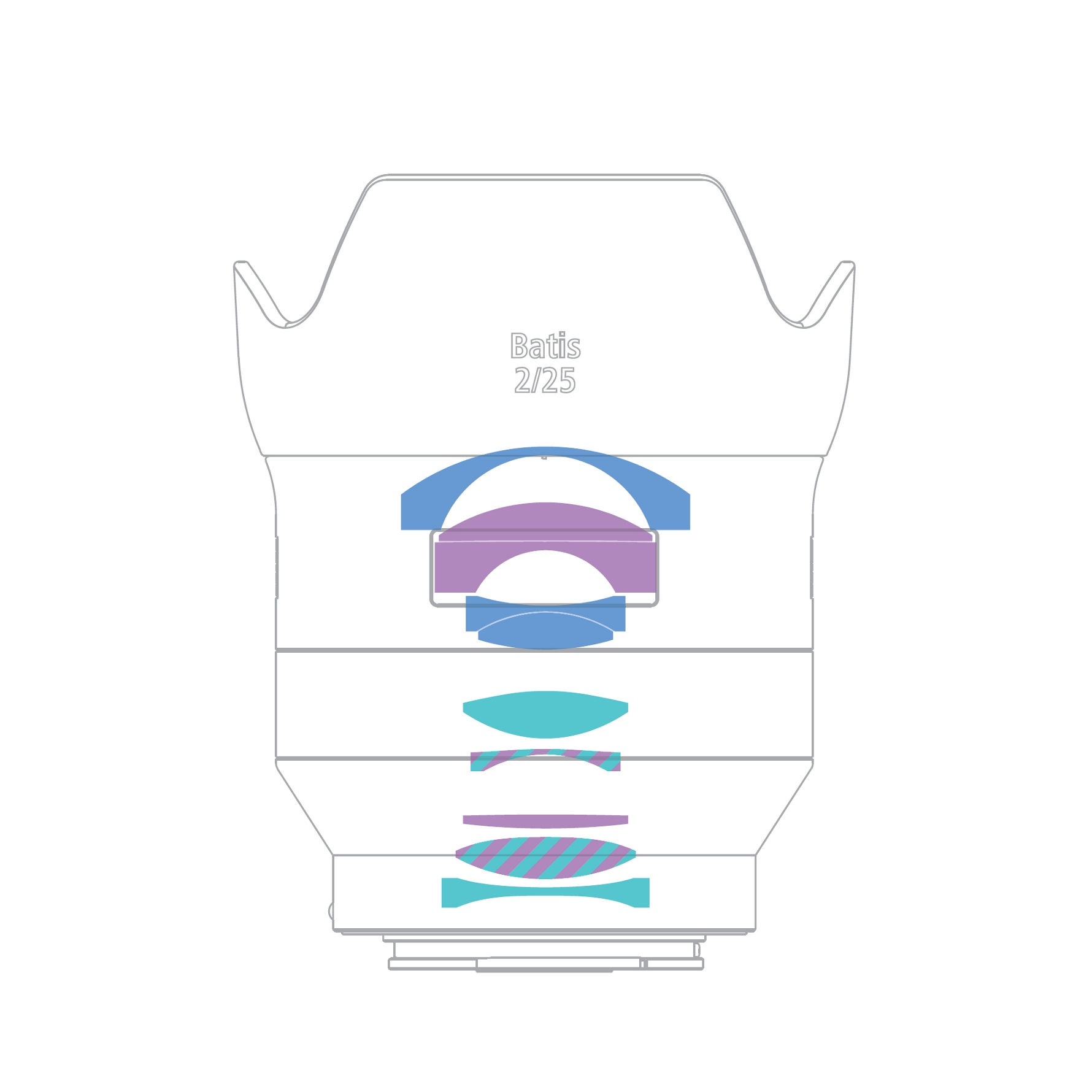

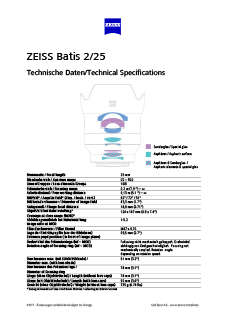

    Cross-sectional diagram of the ZEISS Batis 2/25 lens showing the internal optical element configuration.

    ZEISS Batis 2/25

    Originariamente ideati per fotocamere SLR che richiedono una lunga distanza focale posteriore per brevi lunghezze focali a causa del box specchio (la distanza tra l'elemento della lente posteriore e il piano della pellicola deve essere considerevolmente più lunga della lunghezza focale), gli obiettivi Distagon (design retrofocus) sono perfetti anche per fotocamere con sistema mirrorless grazie al loro percorso del raggio ottimizzato. Anche con lunghezze focali maggiori, il design ottico Distagon ad alte prestazioni consente una buona correzione costante fino agli angoli dell’immagine e una bassissima curvatura di campo.

    ⬛ Design Distagon

    🟩 Lente con superficie ottica asferica

    🟪 Lente in vetro speciale con dispersione parziale anomala

    ⬛ Elementi asferici e vetro speciale

    ⬛ Design a "elementi flottanti"

  • Front view of a ZEISS Batis 2/40 CF camera lens with an integrated OLED display showing a focus distance of 5.5 meters.

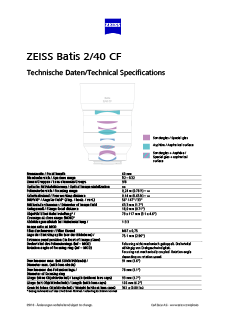

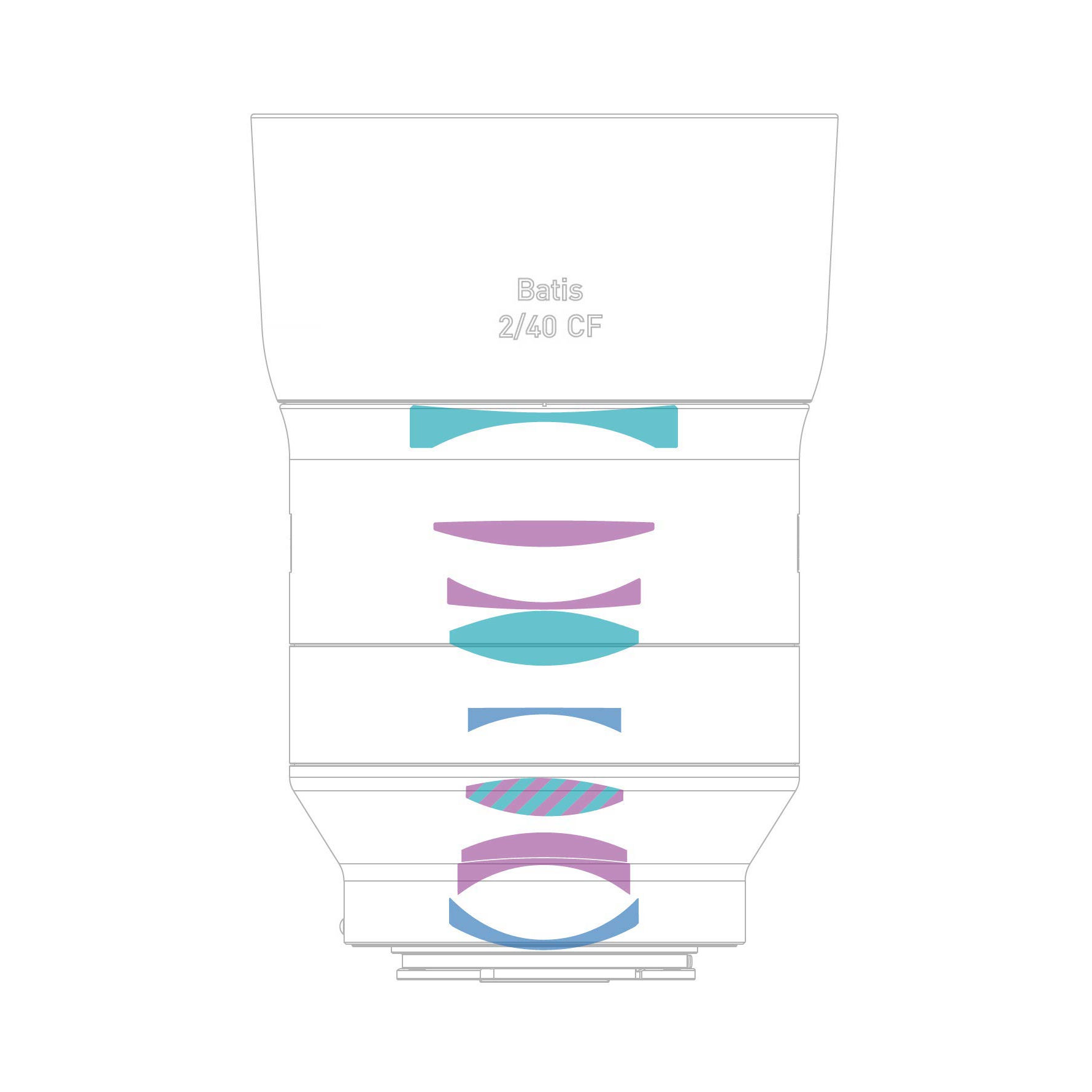

    Cross-sectional diagram of the ZEISS Batis 2/40 CF lens showing internal optical lens elements in various colors.

    ZEISS Batis 2/40 CF

    Originariamente ideati per fotocamere SLR che richiedono una lunga distanza focale posteriore per brevi lunghezze focali a causa del box specchio (la distanza tra l'elemento della lente posteriore e il piano della pellicola deve essere considerevolmente più lunga della lunghezza focale), gli obiettivi Distagon (design retrofocus) sono perfetti anche per fotocamere con sistema mirrorless grazie al loro percorso del raggio ottimizzato. Anche con lunghezze focali maggiori, il design ottico Distagon ad alte prestazioni consente una buona correzione costante fino agli angoli dell’immagine e una bassissima curvatura di campo.

    ⬛ Design Distagon

    🟩 Lente con superficie ottica asferica

    🟪 Lente in vetro speciale con dispersione parziale anomala

    ⬛ Elementi asferici e vetro speciale

    ⬛ Design a "elementi flottanti"

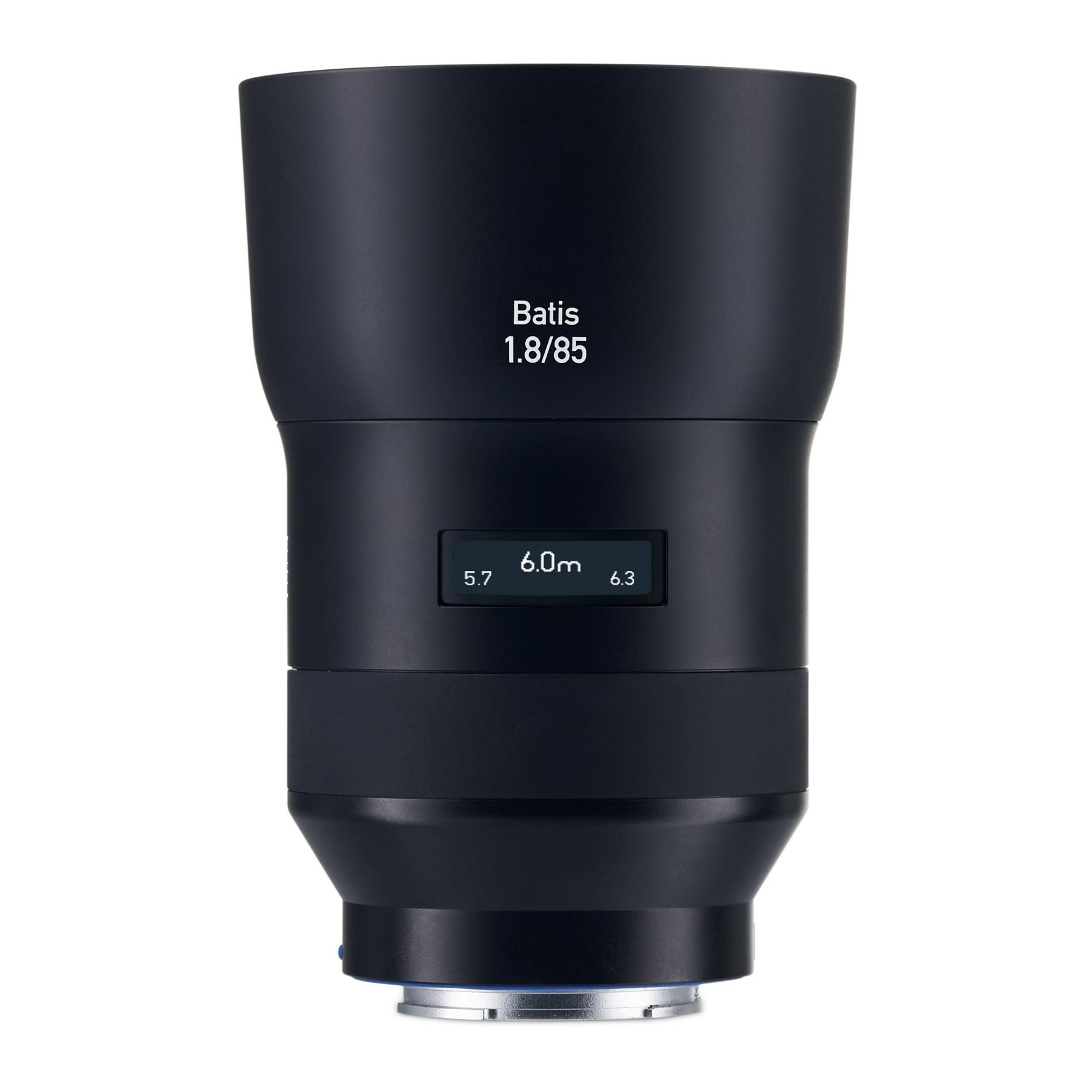

  • Black ZEISS Batis 1.8/85 camera lens with an integrated OLED display showing focus distance and depth of field.

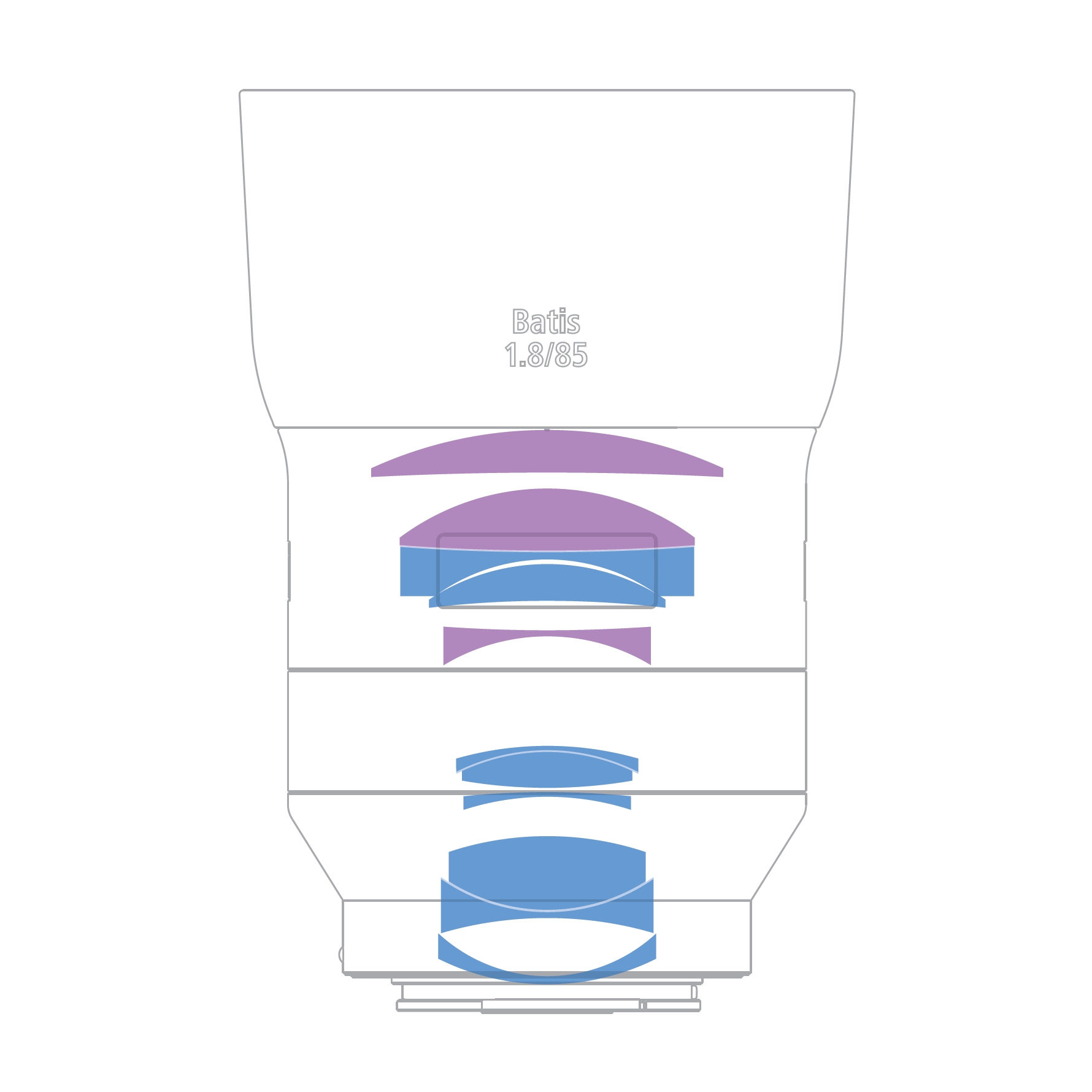

    Cross-sectional diagram of the ZEISS Batis 1.8/85 lens showing the internal optical lens elements in different colors.

    ZEISS Batis 1.8/85

    Un obiettivo con un numero relativamente ridotto di superfici vetro-aria, fu ideato dal Dr. Ludwig Bertele presso ZEISS nel 1930. All’epoca era uno degli obiettivi ad alta velocità più rapidi per la fotografia a 35 mm, con aperture fino a 1:1.5 e un contrasto elevato grazie all’efficiente riduzione della luce diffusa. L’obiettivo deve il suo nome, che deriva dalla parola “sole”, il simbolo della massima luminosità, all’alta velocità e all’elevato contrasto. Continuerete a trovare i vantaggi suddetti nei moderni obiettivi normali e teleobiettivi il cui design ottico si fonda su questo tipo base.

    ⬛ Design Sonnar

    🟩 Lente in vetro speciale con dispersione parziale anomala

    ⬛ Design a "elementi flottanti"

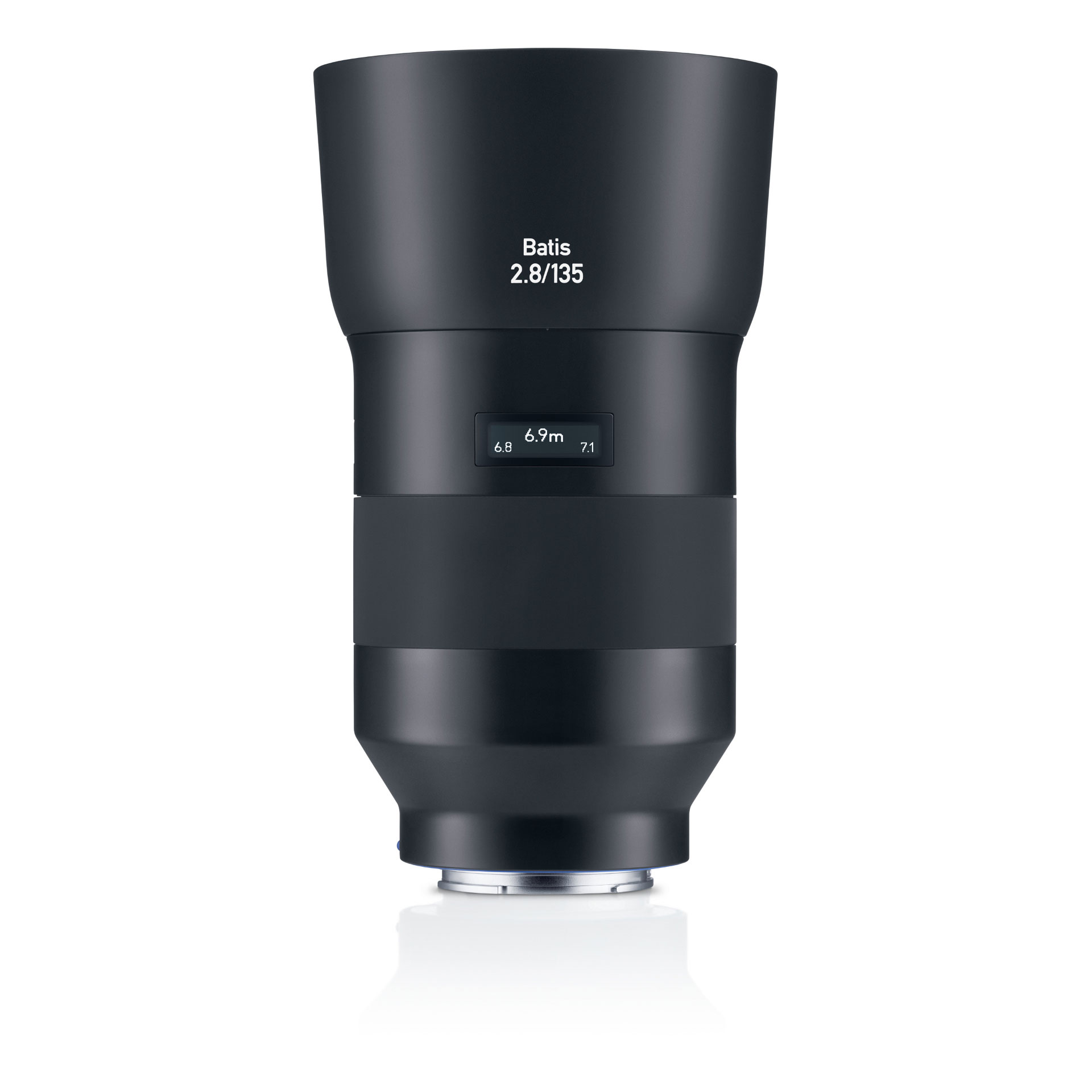

  • ZEISS Batis 2.8/135 camera lens in matte black finish with an integrated OLED display showing focus distance and depth of field.

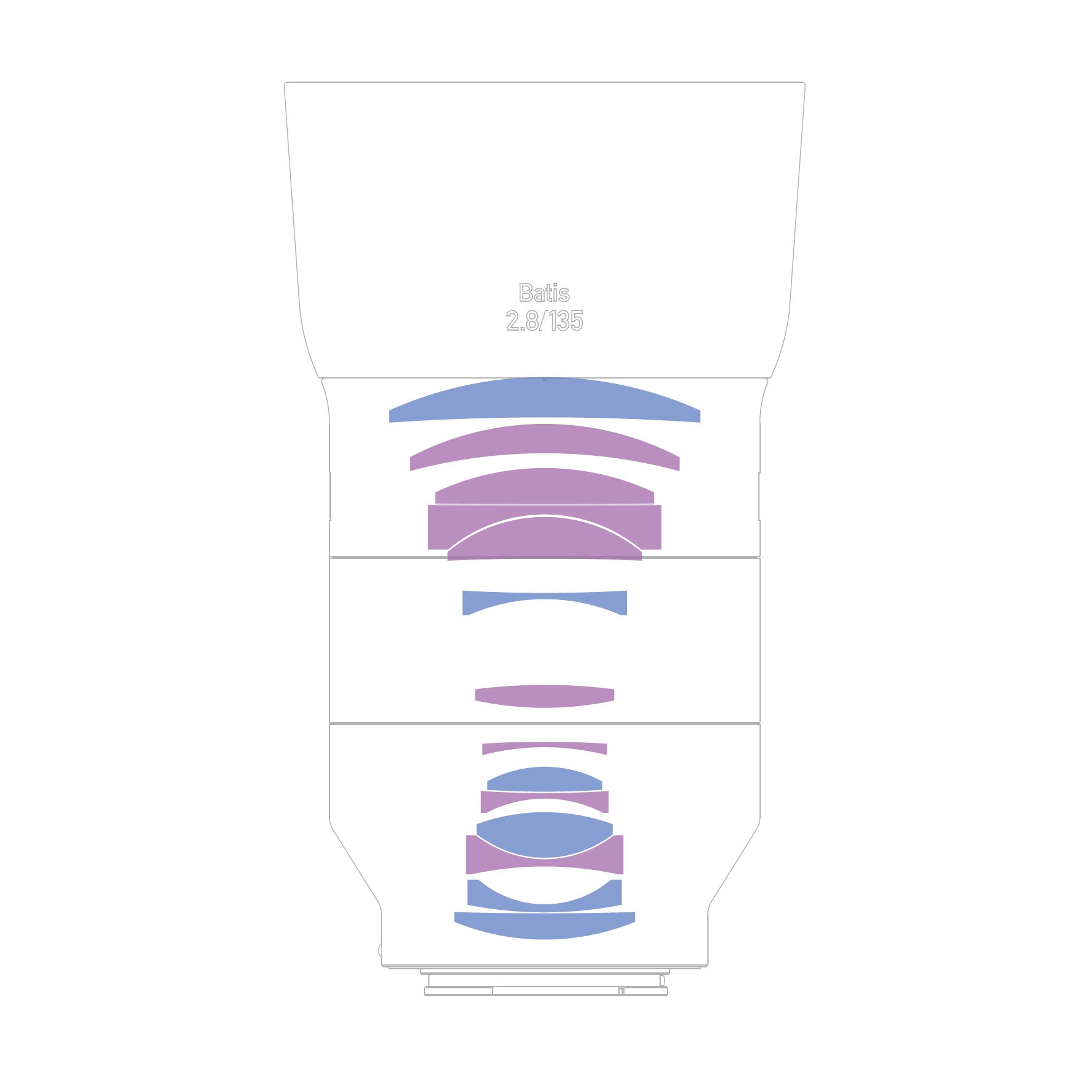

    Cross-sectional diagram of a ZEISS Batis 2.8/135 lens showing the internal optical element layout in different colors.

    ZEISS Batis 2.8/135

    Un obiettivo con un numero relativamente ridotto di superfici vetro-aria, fu ideato dal Dr. Ludwig Bertele presso ZEISS nel 1930. All’epoca era uno degli obiettivi ad alta velocità più rapidi per la fotografia a 35 mm, con aperture fino a 1:1.5 e un contrasto elevato grazie all’efficiente riduzione della luce diffusa. L’obiettivo deve il suo nome, che deriva dalla parola “sole”, il simbolo della massima luminosità, all’alta velocità e all’elevato contrasto. Continuerete a trovare i vantaggi suddetti nei moderni obiettivi normali e teleobiettivi il cui design ottico si fonda su questo tipo base.

    ⬛ Design Sonnar

    🟩 Lente in vetro speciale con dispersione parziale anomala

    ⬛ Design a "elementi flottanti"

ZEISS camera cleaning kit including a lens cleaning brush, air blower, cleaning spray, microfiber cloths, and a black and blue carrying pouch with ZEISS branding.

Accessori per obiettivi fotografici ZEISS

Su misura per soddisfare le vostre esigenze.

Quando si scattano fotografie, un'immagine ottimale non è l'unico elemento da considerare. Anche catturare un'esperienza speciale gioca un ruolo fondamentale. Con le loro funzioni affidabili gli obiettivi per fotocamera di ZEISS consentono ai fotografi di concentrarsi completamente sull'immagine e la composizione, per dar vita alla loro creatività. Per perfezionare questa esperienza ZEISS ora offre accessori su misura per le necessità dei fotografi esigenti.



Rassegne

Obiettivi ZEISS Batis

3d-kraft.com

"I think its most competitive feature of the Batis 25mm is its compact and lightweight form-factor.The days where your arms/shoulders are..."

leophoto.co.uk

"Without a doubt Carl Zeiss Batis 25mm f/2.0 is a stunning lens in general, but also smokes the Sony 28mm f/2.0 in almost every way..."

precision-camera.com

"Combine this perfectly versatile focal length with a close-focus ability, like what is found in the Zeiss Batis 40mm f/2, and you seriously have one lens that can do it all..."

bryanv.com

"The Batis line, introduced in April 2015, are the first full-frame autofocus lenses built especially for Sony E-Mount full-frame cameras..."

photographyblog.com

"The Zeiss Batis 40mm f/2 boasts superb build quality. The lens’ all-metal casing is dust and moisture resistant and it features a metal bayonet mount..."

phillipreeve.net

"The ZEISS Batis 1.8/85mm is a great lens, worth the price if you can easily afford it and are looking for an all-rounder..."

Riconoscimenti

Obiettivi ZEISS Batis
    • Award badge from CHIP rating the ZEISS Batis 2.8/18 mm lens as "Sehr gut" (very good) in September 2016.

    • Award badge from FOTOHITS magazine, issue 09/2016, rating ZEISS prime lenses for Sony A7 cameras as "EXZELLENT".

    • Award badge from Digital Photo magazine rating the ZEISS Batis 2/25 lens as "SUPER" in October 2015.

    • Award graphic from “Pictures – das Foto-Magazin” showing a 10/15 rating for the ZEISS Batis 2.0/25 lens with the label “ÜBERRAGEND.”

    • Award label from FOTOHITS magazine, issue 7-8/2015, rating ZEISS prime lenses for E-mount cameras as "EXZELLENT."

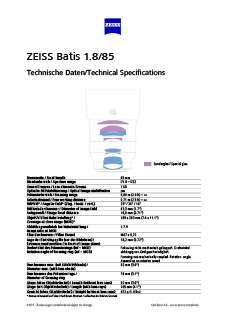

    • Digital Photo award badge with the text "SUPER", dated 10 | 2015, and referencing ZEISS Batis 1.8/85.

    • Silver award ribbon with a red center that reads "Editor's Choice 2015, Pictures - Das Foto-Magazin, ZEISS Batis 1.8/85".

    • Review graphic from "Pictures – das Foto-Magazin" showing the ZEISS Batis 1.8/85 lens rated 10 out of 15 with the verdict "ÜBERRAGEND" (outstanding).

    • Award badge from FOTOHITS magazine issue 7-8/2015 rating ZEISS prime lenses for E-mount cameras as "EXZELLENT".

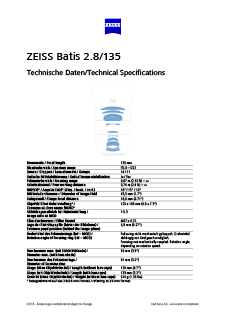

    • Rating badge from "Pictures Das Foto-Magazin" showing the ZEISS Batis 2.8/135 lens receiving 4.5 out of 5 cameras with the rating "SEHR GUT".

A ZEISS camera lens is displayed next to an uncapped silver fountain pen on a white background.
A ZEISS camera lens is displayed next to an uncapped silver fountain pen on a white background.

Registrazione del prodotto

Richiedi l'estensione di garanzia.

ZEISS concede un periodo di garanzia di due anni a partire dalla data di acquisto di tutti i suoi obiettivi fotografici. Questa garanzia può essere estesa a tre anni dopo la registrazione con ZEISS Online Registration. Sebbene l'estensione di garanzia ZEISS sia già disponibile in molti paesi, le richieste di garanzia possono essere presentate solo nel paese di acquisto del prodotto.


  • 1

    Sony è un marchio registrato di Sony Corporation.

  • 2

    Basato sul formato APS-C

  • 3

    A distanza ravvicinata
